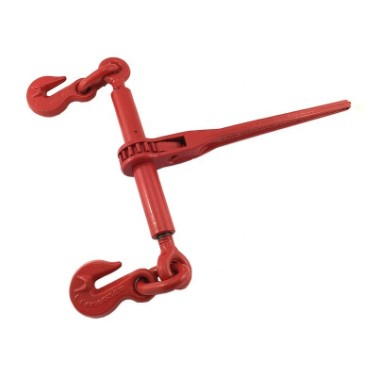

Drop Forged Load Binder Chain Load Binder Wholesale

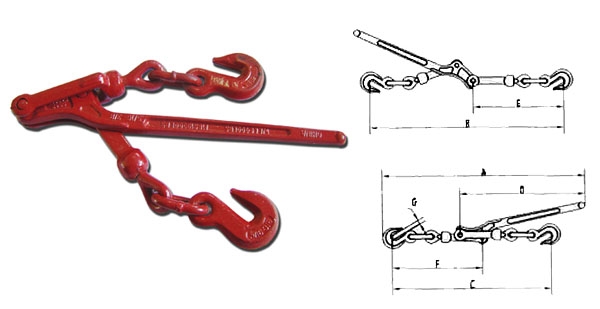

1. Standard Load Binders
Size (in) | W.L.L | Proof Load | Min | Kg/pc | Handle | Dimensions(in) | ||||||
A | B | C | D | E | F | G | ||||||
1/4-5/16 | 2200 | 4400 | 7800 | 1.600 | 11.42 | 18.50 | 17.30 | 14.17 | 11.42 | 8.27 | 8.07 | 0.35 |
5/16-3/8 | 5400 | 10800 | 19000 | 4.773 | 15.43 | 25.20 | 23.20 | 19.49 | 15.55 | 11.22 | 11.22 | 0.51 |
3/8-1/2 | 6600 | 10800 | 19800 | 4.891 | 17.24 | 28.50 | 26.38 | 22.05 | 17.64 | 12.99 | 12.20 | 0.59 |
3/8-1/2 | 9200 | 18400 | 33000 | 5.864 | 17.24 | 28.50 | 26.38 | 22.05 | 17.64 | 12.99 | 12.20 | 0.59 |
1/2-5/8 | 13000 | 26000 | 46000 | 6.536 | 21.00 | 33.86 | 30.12 | 25.87 | 20.87 | 14.37 | 14.37 | 0.74 |

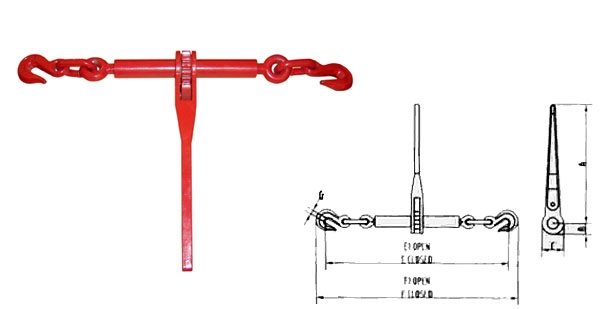

2. Ratchet Load Binders
Size (in) | W.L.L | Proof | Min | Kg/pc | Handle | Dimensions(in) | ||||||
A | B | D | E | E1 | F1 | F1 | ||||||
1/4-5/16 | 2200 | 4400 | 7800 | 1.600 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.62 | 17.79 | 0.35 |
5/16-3/8 | 5400 | 10800 | 19000 | 4.773 | 13.42 | 13.92 | 1.30 | 2.60 | 22.64 | 30.64 | 25.24 | 0.51 |
5/16-3/8 | 6600 | 10800 | 19800 | 4.891 | 13.42 | 13.92 | 1.30 | 2.60 | 22.64 | 30.64 | 25.24 | 0.51 |
3/8-1/2 | 9200 | 18400 | 33000 | 5.864 | 13.92 | 13.92 | 1.30 | 2.60 | 24.13 | 32.13 | 27.04 | 0.59 |
1/2-5/8 | 13000 | 26000 | 46000 | 6.536 | 13.92 | 13.92 | 1.30 | 2.60 | 26.45 | 34.45 | 30.07 | 0.74 |
3. Indirect Load Binder
Size (in) | W.L.L | Proof Load (lbs) | Min | Kg/pc | Handle | Dimensions(in) | ||||||
A | B | C | D | E | F | G | ||||||
5/16-3/8 | 5400 | 10800 | 19000 | 4.2045 | 13 | 37 | 23.62 | 18.9 | 12.6 | 11.02 | 11.02 | 0.51 |

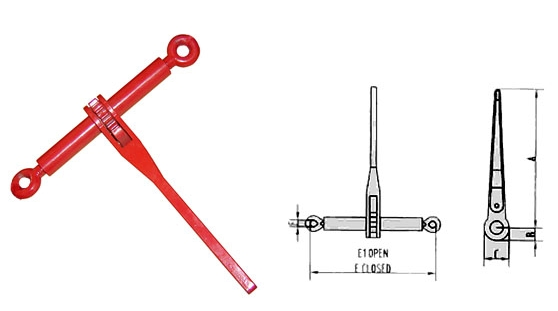

4. Ratchet Type Load Binders without Links or Hooks
Size (in) | W.L.L | Proof | Min | Kg/pc | Handle | Dimensions(in) | |||||
A | B | C | D | E | F | ||||||
5/16-3/8 | 5400 | 10800 | 19000 | 3.545 | 13.42 | 13.92 | 1.30 | 2.60 | 13.70 | 21.70 | 0.79 |
3/8-1/2 | 9200 | 18400 | 33000 | 3.545 | 13.92 | 13.92 | 1.30 | 2.60 | 13.70 | 21.70 | 1.02 |
1/2-5/8 | 13000 | 26000 | 46000 | 3.864 | 13.92 | 13.92 | 1.30 | 2.60 | 14.17 | 22.17 | 1.02 |
5. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
6. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! | |
7. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
8. Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
9. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
10. Contact
Mark Wang
International Sales Director
Qingdao Sino Summit Machinery Co., Ltd.
Add: Add: Room 401, Unit 2, Building 9, No. 412 Chongqing Middle Road, Licang District, Qingdao, China
Post Code: 266041
Skype: enjoyfreshair Tel:0086-13573263229
Mob:0086-13573263229 Whatsapp:008613573263229
Wechat: 008613573263229
http://www.sinosummit.cn
http://www.sinosummit.com.cn
