GW Instek Brand GPT-9800 Series Electrical Safety Tester AC withstanding DC withstanding insulation resistance ground bond tests

GW Instek Brand GPT-9800 Series Electrical Safety Tester

The GPT-9800 Series Electrical Safety Tester supports the major test items among all the needed for the compliance of the safety standards such as IEC, EN, UL, CSA, GB, JIS and other safety regulations.

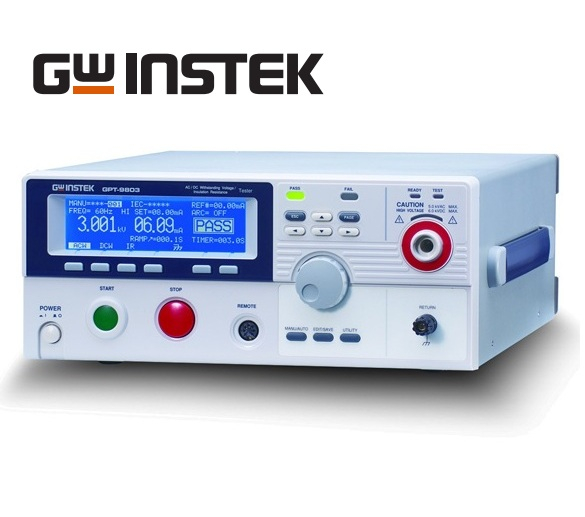

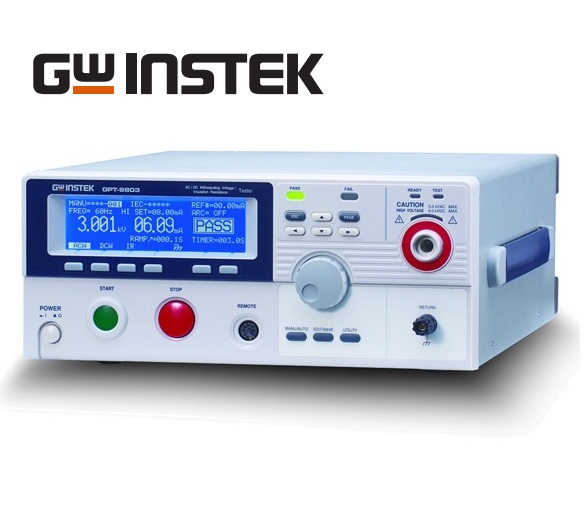

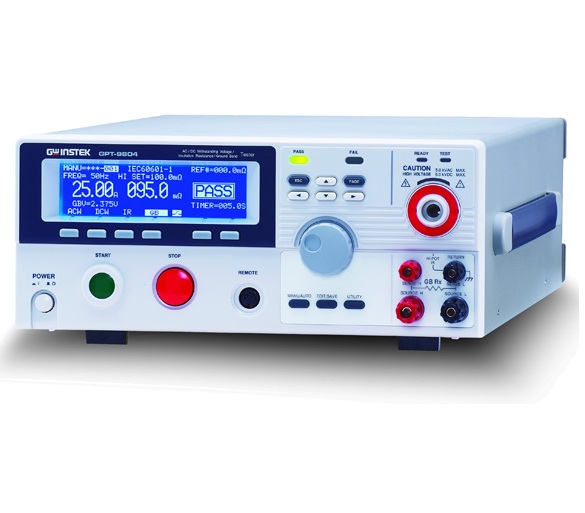

The GPT-9800 Series, equipped with a simple & clear panel layout, a high resolution dot matrix LCD display, and color LED indicators, allows operators to interpret measurement results easily and quickly. All major test functions, including AC withstanding (AC 5kV/40mA), DC withstanding (DC 6kV/10mA), insulation resistance (DC 50V ~ 1000V) and ground bond (AC 30A max.) tests, are performed under a high-stability voltage output with high-resolution measurement results. Further more, the test duration, ramp up time and upper/lower limits of the output voltage are fully-adjustable to accommodate a wide variety of safety tests with accurate measurement results.

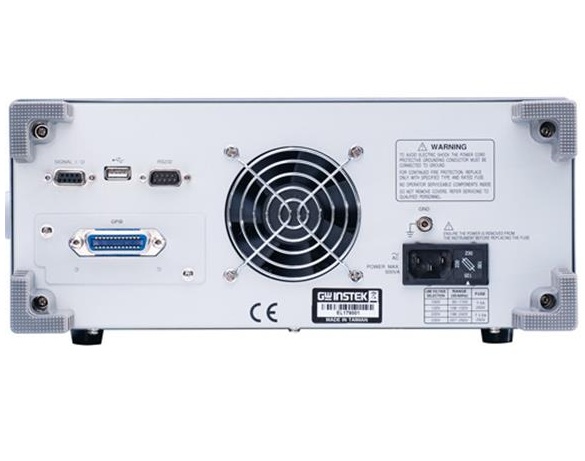

Other functions and features of the GPT-9800 include: open circuit detection for ground bond testing to get correct measurement result with confidence; 100 sets of memory to save panel settings, which can be recalled for single test individually or for automatic tests in sequence; a remote output on-off terminal in the front panel and a signal I/O port in the rear panel provided as the means for remote start/stop control of the safety tester; RS-232C, USB and GPIB (optional) interfaces available for PC remote control and test result logging.

1. Electrical Safety Compliance Analyzer performance

• 200VA AC Test Capacity

• 240x64 Ice Blue Dot matrix LCD

• Manual/Auto Mode

• Function Key for quick selecting

• High intensity flash for Caution & Status indication

• Safety INTERLOCK function

• Zero Crossing Turn-on Operation

• Controllable Ramp-up Time

• RMS Current Measurement

• High resolution: 1uA for measuring current, 2V for setting voltage

• PWM amplifier to enhance the power efficiency and reliable testing

• Max. 100 memory block for test condition (step) setting. And each step can be named individually.

• Remote terminal on the front panel for “start” and “stop” control

• Interface : RS-232C, USB device, Signal I/O and GPIB (optional)

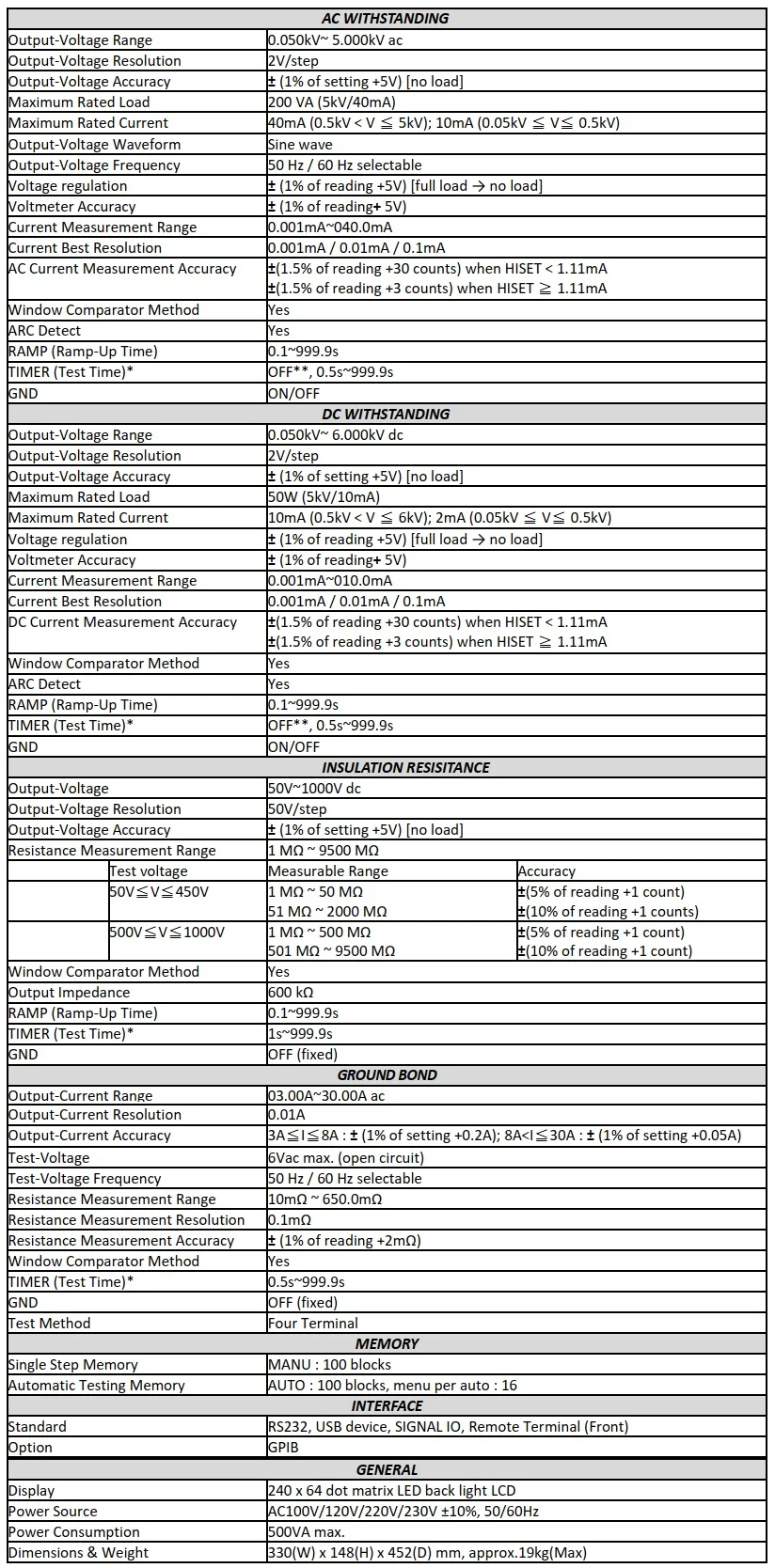

2. Electrical Safety Analyzer data

3.Product introduction
