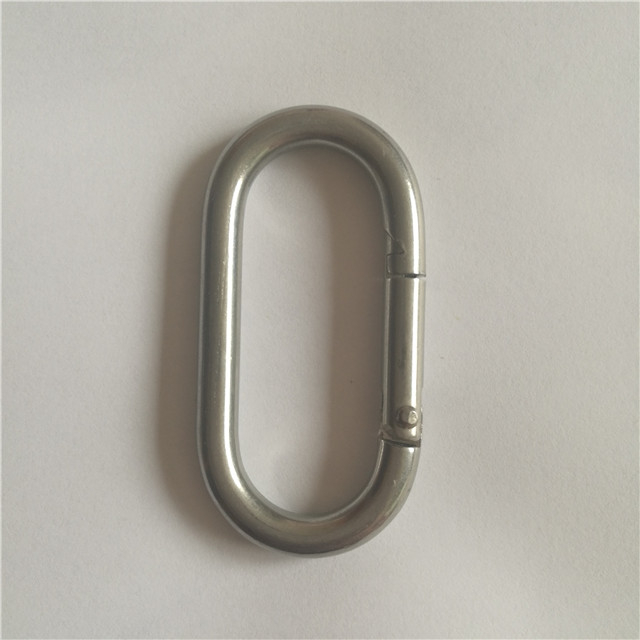

Oval Carabiner Hook Straight Snap Hook Clip Hook Manufacturer

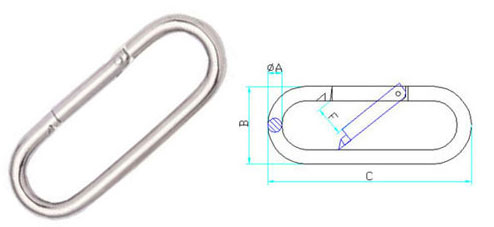

1.Straight snap hook data
SIZE | φA | B | C | F | W.L.L |
mm | mm | mm | mm | mm | LBS |
5×50 | 5 | 25 | 50 | 9 | 100 |
6×60 | 6 | 30 | 60 | 11 | 140 |
8×80 | 8 | 40 | 80 | 13 | 250 |
10×100 | 10 | 50 | 100 | 16 | 400 |
11×120 | 11 | 58 | 120 | 21 | 500 |

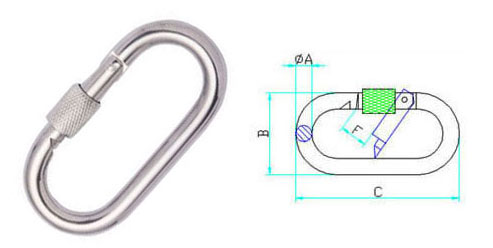

2. Straight Snap Hook With Screw Data
SIZE | φA | B | C | F | W.L.L |
mm | mm | mm | mm | mm | LBS |
5×50 | 5 | 25 | 50 | 9 | 100 |
6×60 | 6 | 30 | 60 | 11 | 140 |
8×80 | 8 | 40 | 80 | 13 | 250 |
10×100 | 10 | 50 | 100 | 16 | 400 |
11×120 | 11 | 58 | 120 | 21 | 500 |
3. Long Straight Snap Hook data
SIZE | φA | B | C | F | W.L.L |
mm | mm | mm | mm | mm | LBS |
5×67 | 5 | 25 | 67 | 9 | 100 |
6×80 | 6 | 30 | 80 | 11 | 140 |
8×95 | 8 | 40 | 95 | 12 | 250 |
4. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
5. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! |
6. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
7. Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
8. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
9. Contact
Mark Wang
International Sales Director
Qingdao Sino Summit Machinery Co., Ltd.
Add: Add: Room 401, Unit 2, Building 9, No. 412 Chongqing Middle Road, Licang District, Qingdao, China
Post Code: 266041
Skype: enjoyfreshair Tel:0086-13573263229
Mob:0086-13573263229 Whatsapp:008613573263229
Wechat: 008613573263229
http://www.sinosummit.cn
http://www.sinosummit.com.cn
