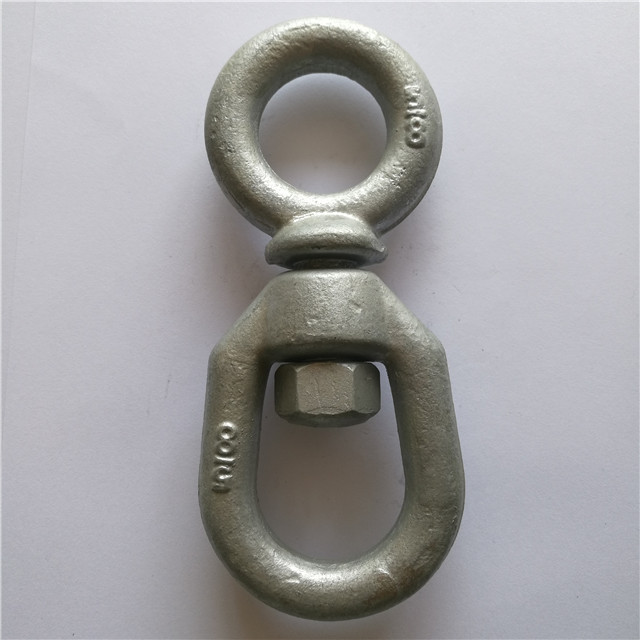

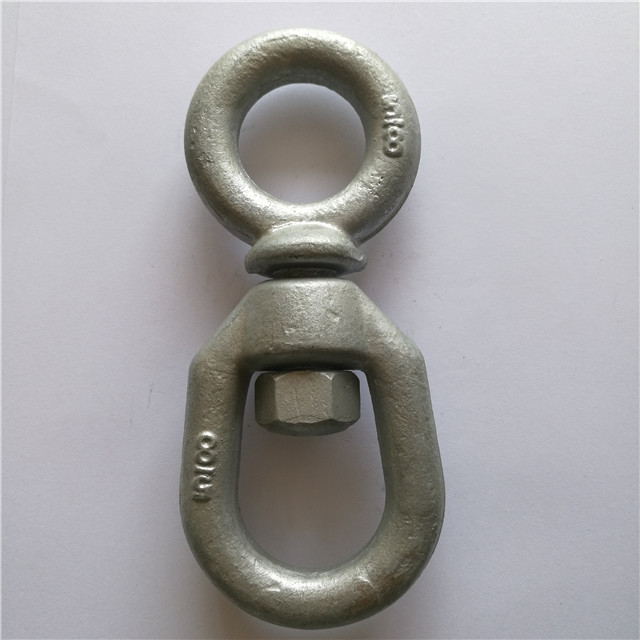

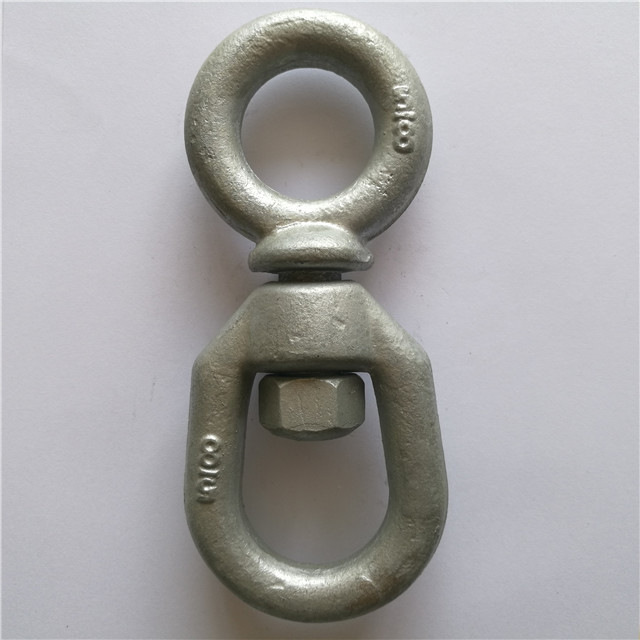

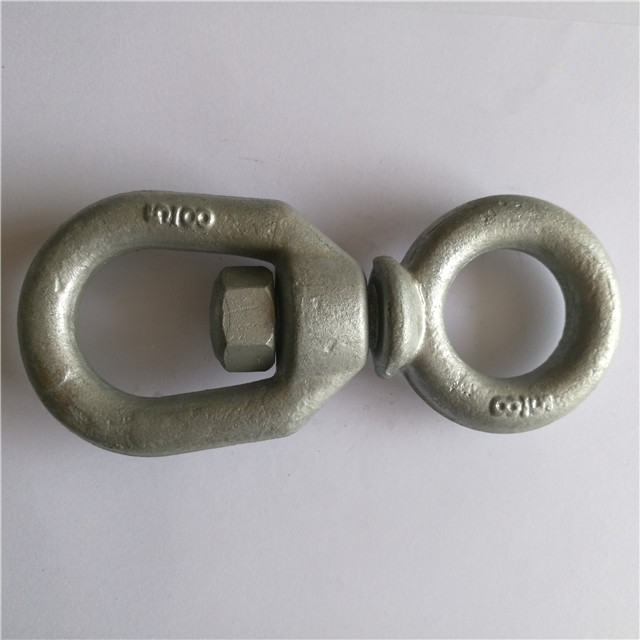

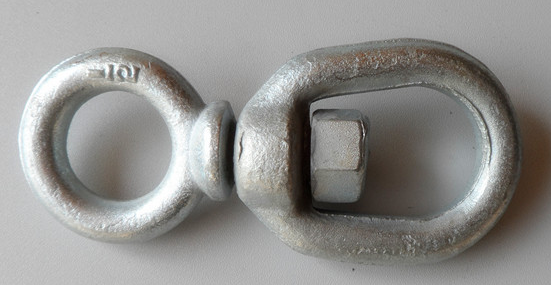

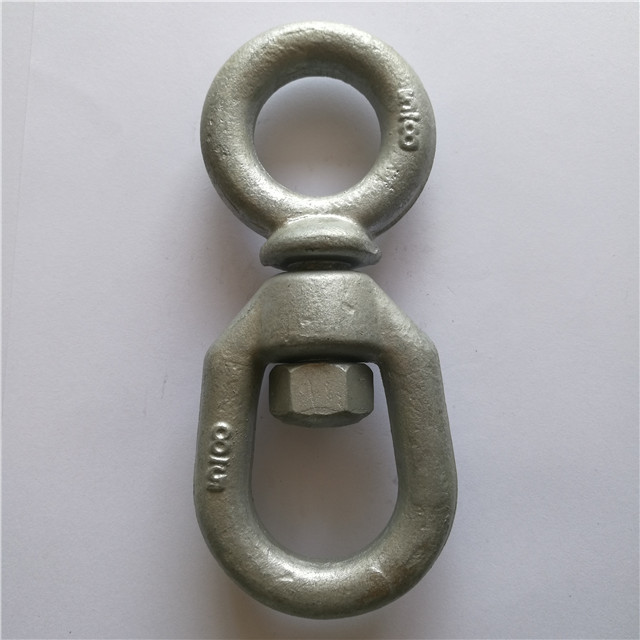

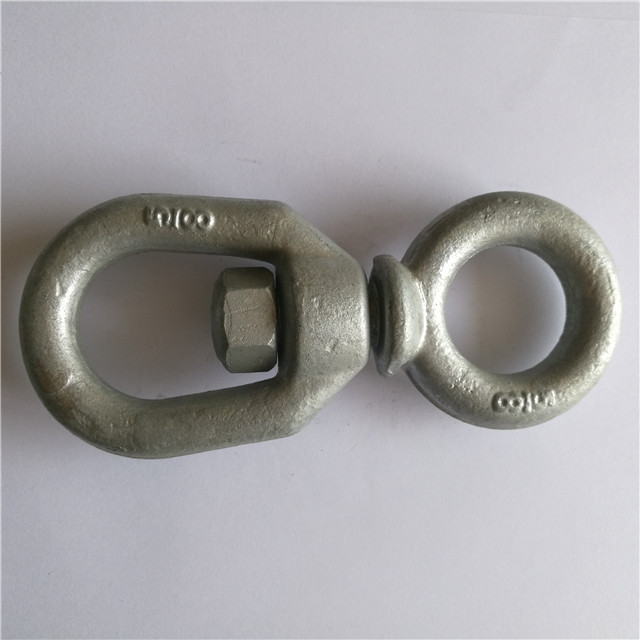

Us Type Swivel Chain Swivel G401 Drop Forged Swivel Rings
1.G401 Drop Forged US Type Swivel Ring Data
Chain Size | DIMENSIONS(in) | W.L.L | Weight | ||||
(in) | B | C | D | G | T | (lbs) | (kgs) |
1/4 | 0.69 | 0.75 | 0.62 | 0.25 | 3 | 850 | 0.06 |
5/16 | 0.81 | 1 | 0.72 | 0.31 | 3.59 | 1,250 | 0.12 |
3/8 | 0.94 | 1.25 | 1 | 0.38 | 4.44 | 2,500 | 0.25 |
1/2 | 1.31 | 1.5 | 1.25 | 0.5 | 5.69 | 3,600 | 0.51 |
5/8 | 1.56 | 1.75 | 1.5 | 0.62 | 6.89 | 5,200 | 0.95 |
3/4 | 1.75 | 2 | 1.75 | 0.75 | 7.84 | 7,200 | 1.45 |
7/8 | 2.06 | 2.25 | 2 | 0.87 | 9.02 | 10,000 | 2.3 |
1 | 2.31 | 2.5 | 2.25 | 1 | 10.24 | 12,500 | 3.61 |
1 1/8 | 2.33 | 2.75 | 2.5 | 1.13 | 11.25 | 16,500 | 5.45 |
1 1/4 | 2.66 | 3.13 | 2.75 | 1.25 | 12.15 | 18,000 | 7 |
1 1/2 | 4.4 | 4 | 3 | 1.5 | 16.38 | 45,200 | 15.04 |
2. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
3. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! | |
4. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
5.Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
6. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
7.Contact
Mark Wang
International Sales Director
Qingdao Sino Summit Machinery Co., Ltd.
Add: Add: Room 401, Unit 2, Building 9, No. 412 Chongqing Middle Road, Licang District, Qingdao, China
Post Code: 266041
Skype: enjoyfreshair Tel:0086-13573263229
Mob:0086-13573263229 Whatsapp:008613573263229
Wechat: 008613573263229
http://www.sinosummit.cn
http://www.sinosummit.com.cn
