GPP-1326/GPP-2323/GPP-3323/GPP-4323
GW INSTEK
GW INSTEK CHINA GPP-Series Multi-Output Programmable D.C. Power Supply

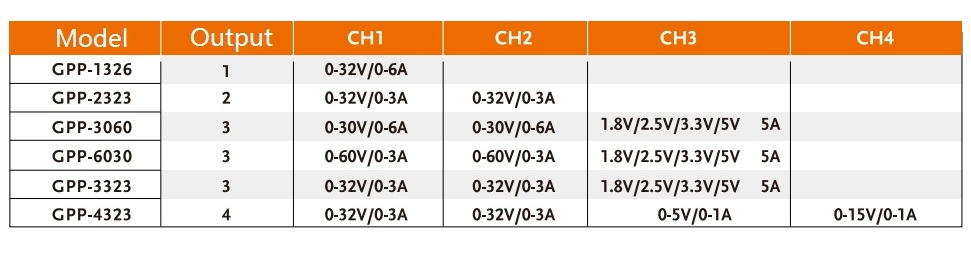

With the maximum output power of 217W, the GPP-Series, the multi-channel programmable DC power supply, includes four models:

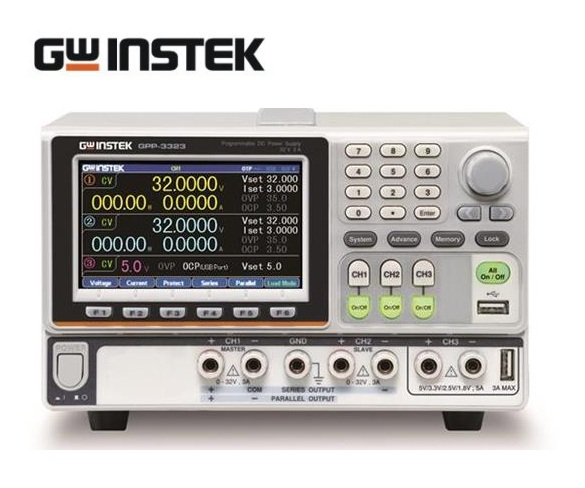

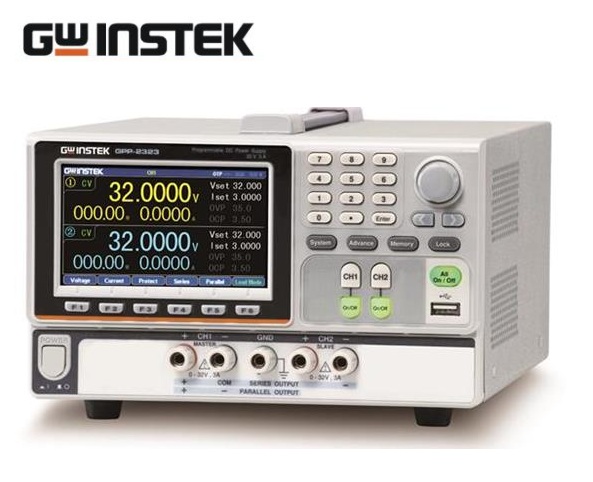

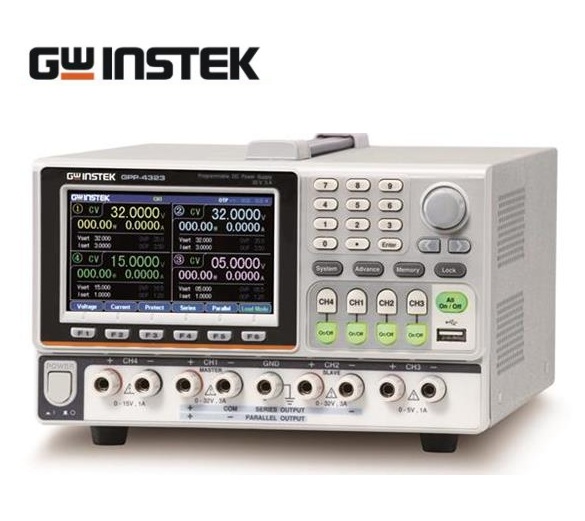

GPP-1326 (0~32V/0~6A) for single-channel output and GPP-2323 for dual-channel output (CH1:0~32V/0~3A, CH2: 0~32V/0~3A), GPP-3323 for three-channel output (CH1: 0~32V/0~3A, CH2:0~32V/0~3A, CH3: 1.8V, 2.5V, 3.3V, 5.0V/5A) and GPP-4323 for four-channel output (CH1:0~32V/0~3A, CH2:0~32V/0~3A, CH3:0~5V/0 ~1A, CH4: 0~15V/0~1A).
This series not only provides high program resolution (1mV/0.1mA) and read back resolution (0.1mV/0.1mA), but also features optimal low-ripple noise characteristics ≦350uVrms/≦2mArms and output transient recovery capability≦50S. Independent output on-off switch is provided for each channel.
4.3”TFT LCD Display
Supports Setting Value, Measurement Value and Output Waveform Display
Load Function (CC, CV, CR Mode)
Setting Resolution: 1mV / 0.1mA; Read Back Resolution: 0.1mV / 0.1mA
Low Ripple Noise: ≦350uVrms/ ≦2mArms
Transient Response Time: ≦50uS
Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection
Delay Function / Output Monitoring Function / Output Recorder Function
Intelligent Temperature Control Fan Effectively Reduces Noise
Sequential Output Function and Built-in 8 Template Waveforms
The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second.
Provides 10 Sets of Memory for Each Sequence/Delay/Recorder/Panel Setting Condition
GPP-3323 Supports A USB (Type A) Output Terminal

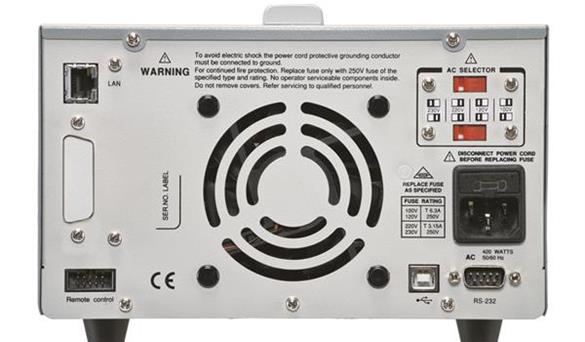

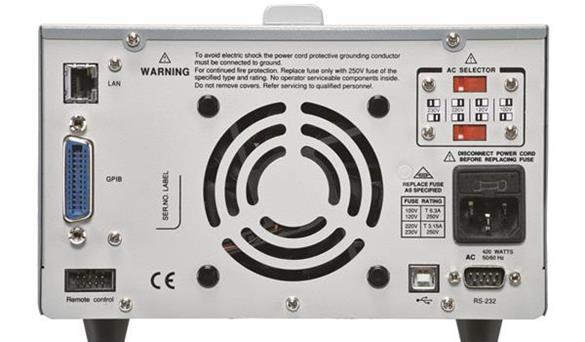

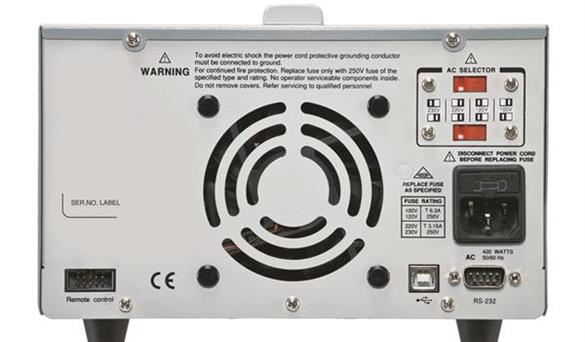

Standard: RS-232, USB, Ext I/O ; Optional: LAN, GPIB+LAN
Compatible with Commands of GPD-x303S Series
3.Product introduction
Usage | DC Power Supply |
MOQ | No MOQ |
Capacity | 100 sets/Month |
Package | carton box |
Sample time | 10-30 days |
Lead time | 15-30 days based on the order quantity |
Payment Terms | 50% deposit in advance, 50% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! | |
4. Contact
Mark Wang
International Sales Director
Qingdao Sino Summit Machinery Co., Ltd.
Post Code: 266041
Skype: enjoyfreshair Tel:0086-13573263229
Mob:0086-13573263229 Whatsapp:008613573263229
Wechat: 008613573263229
