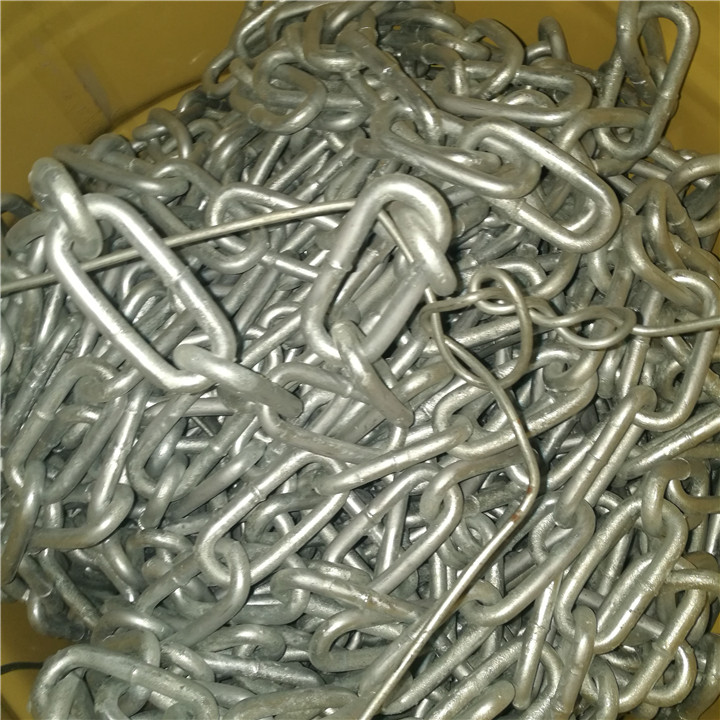

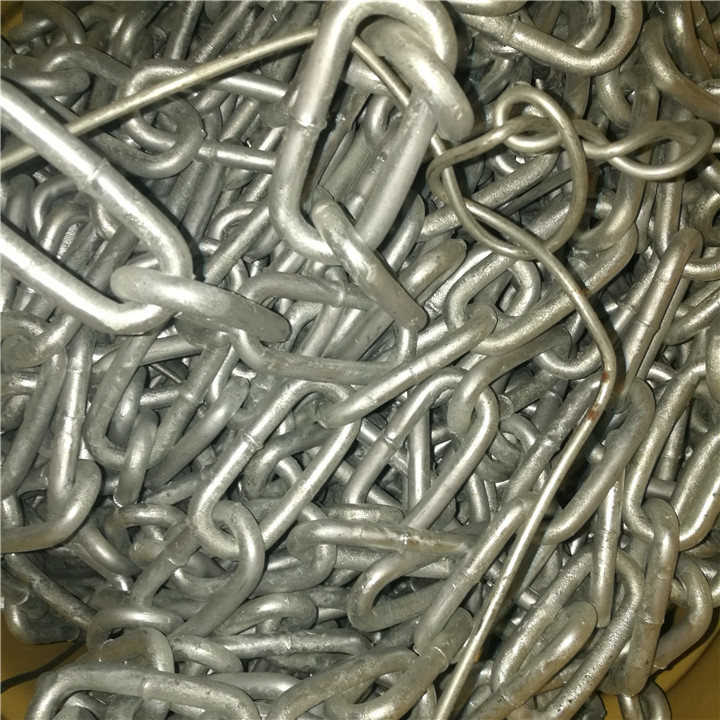

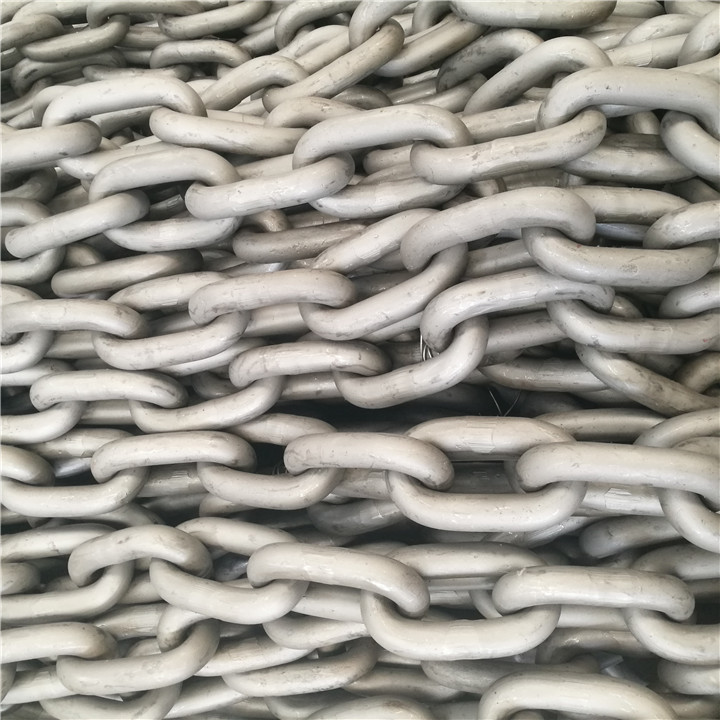

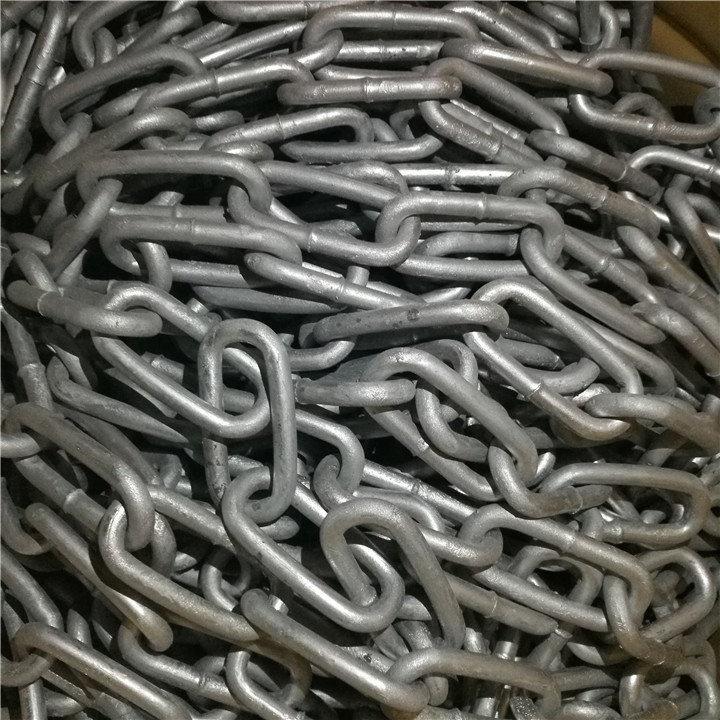

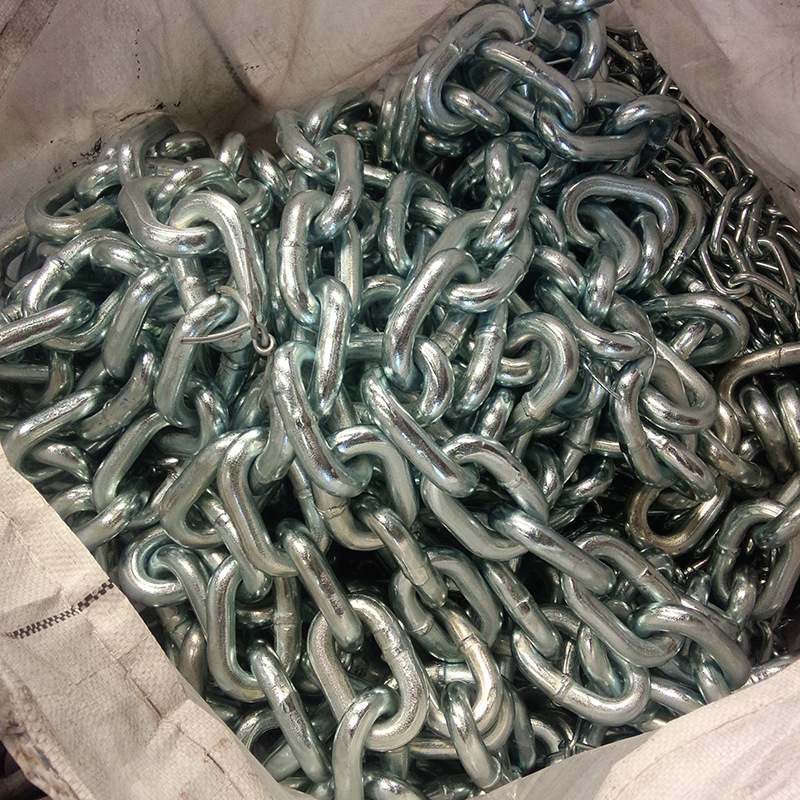

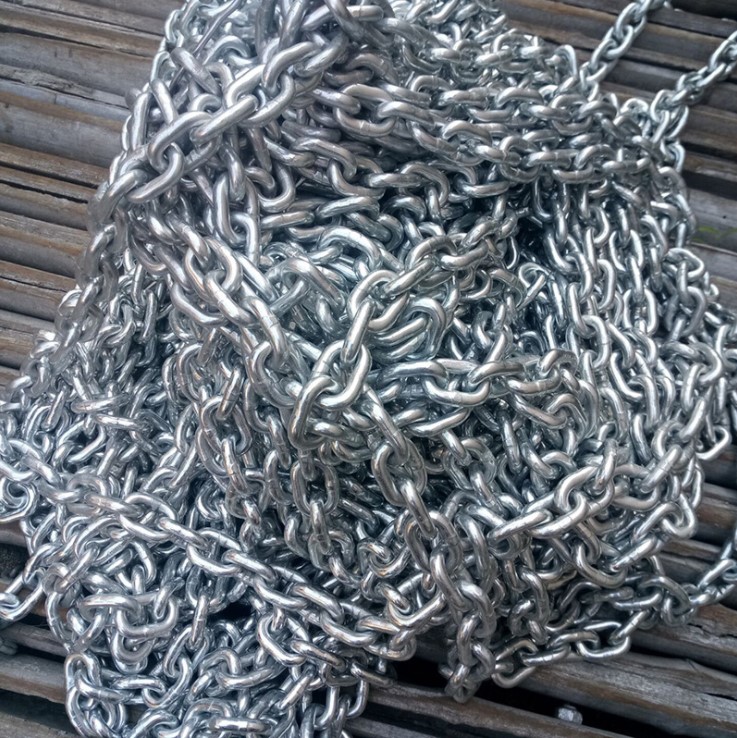

Hot Galvanized DIN766 Link Chain Short Link Chain
1. DIN766 Link Chain Introduction

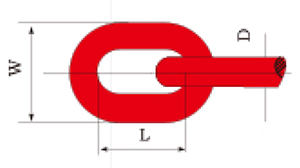

SIZE | INSIDE LENGHT | INSIDE | OUTSIDE | LENGTH | WEIGHT | |||||
mm | ±mm | mm | +mm | -mm | mm | mm | mm | +mm | -mm | |
2 | 0.2 | 12 | 0.2 | 0.2 | 3.5 | 7.5 | 132 | 1.0 | 0.5 | 0.07 |
3 | 0.2 | 16 | 0.2 | 0.2 | 4.2 | 11 | 176 | 1.4 | 0.7 | 0.16 |
4 | 0.2 | 16 | 0.3 | 0.2 | 5.0 | 13.5 | 176 | 2.1 | 1.1 | 0.32 |
5 | 0.2 | 18.5 | 0.4 | 0.2 | 6.0 | 17 | 203.5 | 2.4 | 1.2 | 0.5 |
6 | 0.2 | 18.5 | 0.4 | 0.2 | 7.2 | 20.2 | 203.5 | 2.4 | 1.2 | 0.8 |
7 | 0.3 | 22 | 0.4 | 0.2 | 8.4 | 23.8 | 242 | 3.0 | 1.4 | 1.1 |
8 | 0.3 | 24 | 0.4 | 0.2 | 9.6 | 27.2 | 264 | 3.2 | 1.5 | 1.4 |
9 | 0.4 | 27 | 0.5 | 0.3 | 10.8 | 30.6 | 297 | 3.6 | 1.8 | 1.8 |
10 | 0.4 | 28 | 0.5 | 0.3 | 12.0 | 34 | 308 | 3.7 | 1.9 | 2.2 |
11 | 0.4 | 31 | 0.5 | 0.3 | 13.2 | 37.4 | 341 | 4.0 | 2.0 | 2.7 |
12 | 0.3 | 36 | 0.6 | 0.3 | 14.4 | 40.8 | 396 | 4.4 | 2.2 | 3.10 |
13 | 0.5 | 36 | 0.6 | 0.3 | 15.6 | 44.2 | 306 | 4.6 | 2.4 | 3.8 |
14 | 0.6 | 41 | 0.7 | 0.4 | 16.8 | 47.6 | 451 | 5.4 | 2.7 | 4.4 |
16 | 0.6 | 45 | 0.8 | 0.4 | 19.2 | 54.4 | 495 | 6.0 | 3.0 | 5.7 |
18 | 0.9 | 50 | 0.8 | 0.4 | 21.6 | 61.2 | 550 | 6.6 | 3.3 | 7.3 |
19 | 0.4 | 53 | 0.9 | 0.4 | 22.8 | 64.6 | 583 | 7.0 | 3.7 | 7.97 |
20 | 1.0 | 56 | 1.0 | 0.5 | 24.0 | 68.0 | 616 | 7.4 | 3.7 | 9.0 |
22 | 1.2 | 62 | 1.1 | 0.5 | 26.4 | 75.0 | 682 | 8.0 | 4.0 | 11.0 |
23 | 1.2 | 64 | 1.1 | 0.5 | 27.6 | 78.2 | 704 | 8.4 | 4.2 | 12 |
26 | 1.3 | 73 | 1.2 | 0.6 | 31.2 | 88.4 | 803 | 9.6 | 4.8 | 15 |
28 | 1.4 | 78 | 1.3 | 0.65 | 33.8 | 95.2 | 858 | 10.2 | 5.1 | 18 |
30 | 1.5 | 84 | 1.4 | 0.7 | 41.0 | 102 | 924 | 11.0 | 5.5 | 19.5 |
32 | 1.6 | 90 | 1.5 | 0.75 | 43.0 | 108.8 | 990 | 11.8 | 5.9 | 23.0 |
2. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
3. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! | |
4. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
5.Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
6. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
7.Contact
Mark Wang
International Sales Director
Qingdao Sino Summit Machinery Co., Ltd.
Add: Add: Room 401, Unit 2, Building 9, No. 412 Chongqing Middle Road, Licang District, Qingdao, China
Post Code: 266041
Skype: enjoyfreshair Tel:0086-13573263229
Mob:0086-13573263229 Whatsapp:008613573263229
Wechat: 008613573263229
http://www.sinosummit.cn
http://www.sinosummit.com.cn
