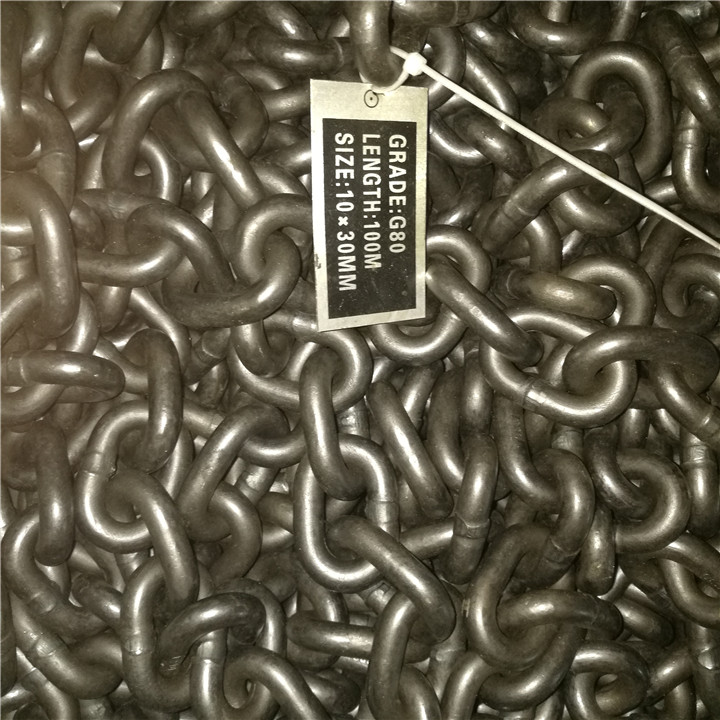

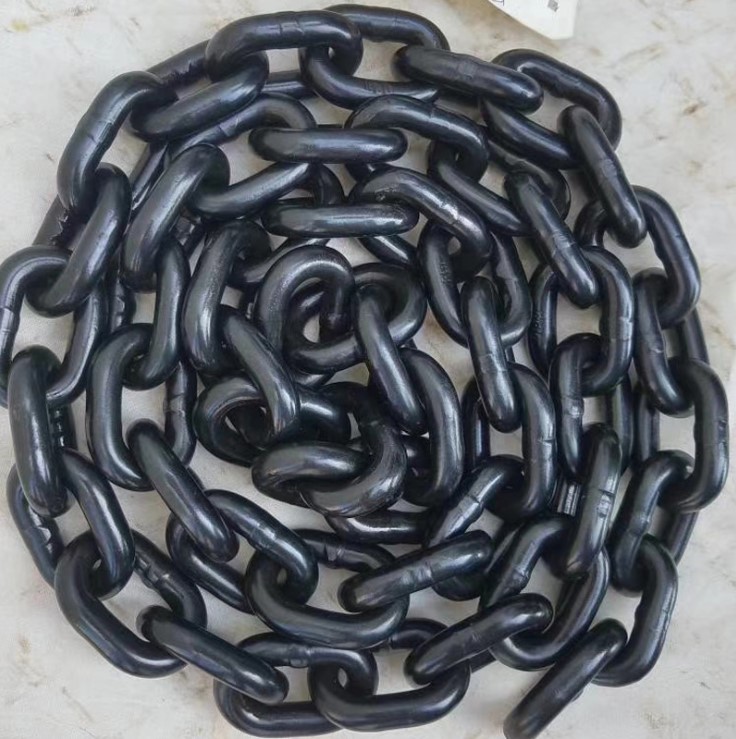

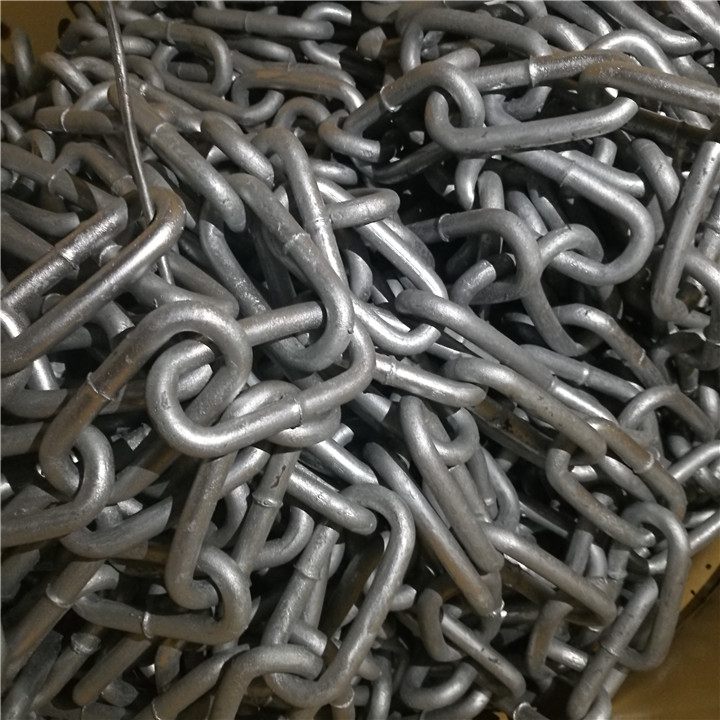

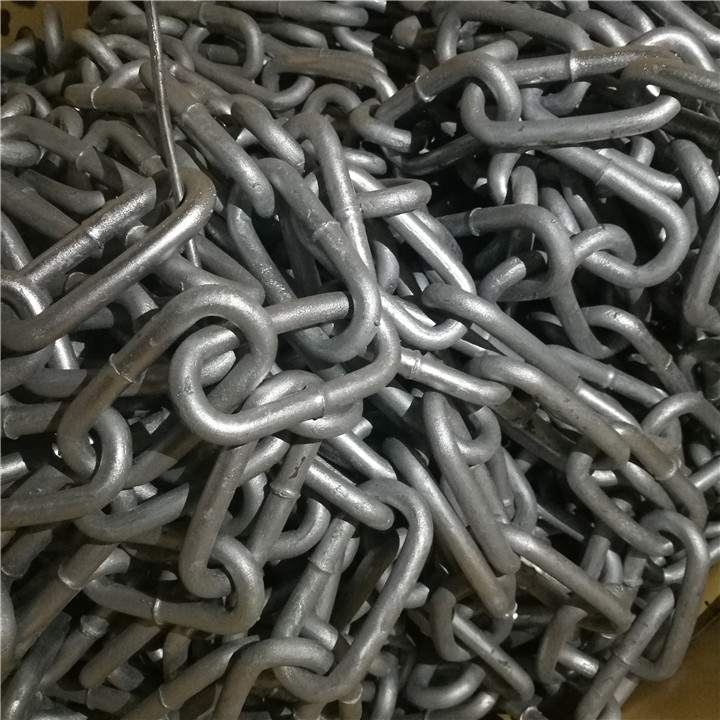

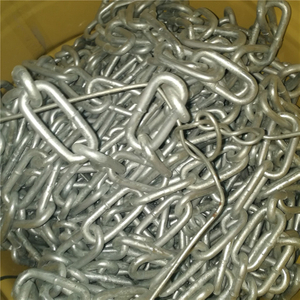

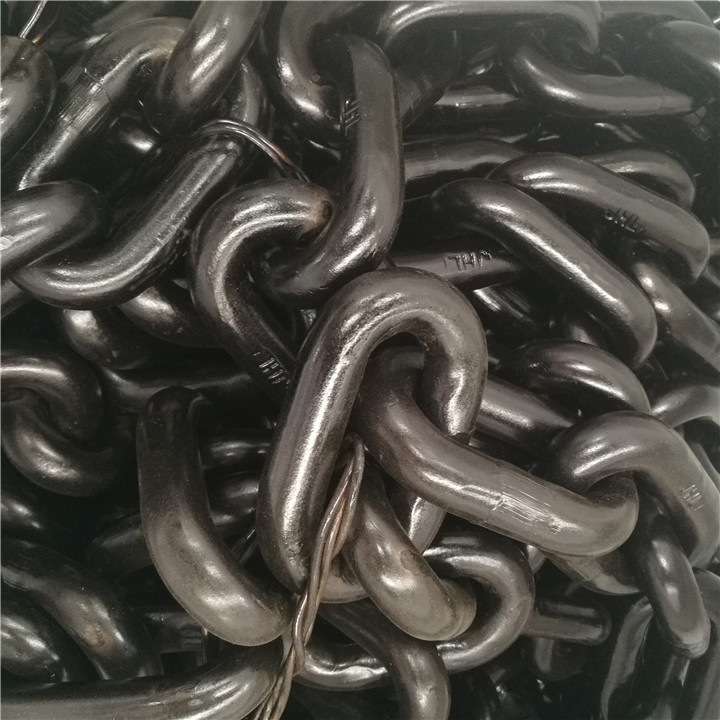

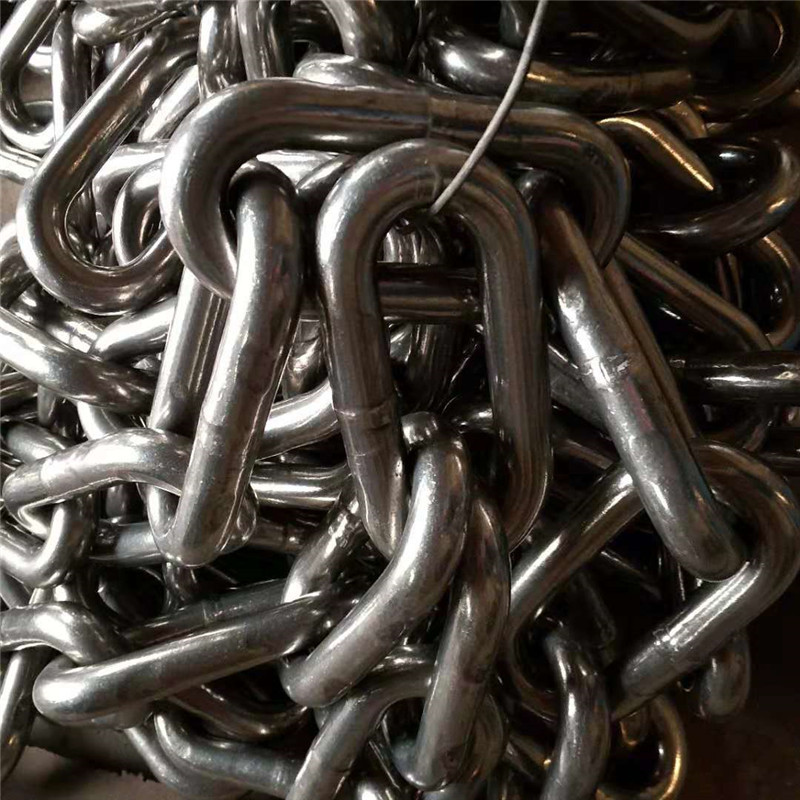

Link Chain G80 Link Chain Large Link Chain
1. G80 Lifting Chain Introduction

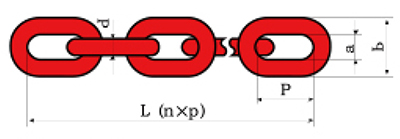

ITEM NO. | WLL/T | B.L/T | D(mm) | t(mm) | b1(mm) | b2(mm) |
6mm | 1.12 | 4.48 | 6±0.24 | 18±0.5 | 7.8 | 22.2 |
7mm | 1.5 | 6 | 7±0.28 | 21±0.6 | 9.1 | 25.9 |
8mm | 2 | 8 | 8±0.32 | 24±0.7 | 10.4 | 29.6 |
10mm | 3.15 | 12.6 | 10±0.4 | 30±0.9 | 13 | 37 |
13mm | 5.3 | 21.2 | 13±0.52 | 39±1.2 | 16.9 | 48.1 |
16mm | 8 | 32 | 16±0.64 | 48±1.4 | 20.8 | 59.2 |
18mm | 10 | 40 | 18±0.90 | 54±1.6 | 23.4 | 66.6 |
20mm | 12.5 | 50 | 20±1.00 | 60±1.8 | 26 | 74 |
22mm | 15 | 60 | 22±1.10 | 66±2.0 | 28.6 | 81.4 |
26mm | 21.2 | 84.8 | 26±1.30 | 78±2.3 | 33.8 | 96.2 |
32mm | 31.5 | 126 | 32±1.60 | 96±2.9 | 41.6 | 118 |
Note: a. Tested at 2.5 times working tension
b.Breaking tension is four times the working pull.
2. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
3. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! | |
4. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
5.Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
6. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
7.Contact
Mark Wang
International Sales Director
Qingdao Sino Summit Machinery Co., Ltd.
Add: Add: Room 401, Unit 2, Building 9, No. 412 Chongqing Middle Road, Licang District, Qingdao, China
Post Code: 266041
Skype: enjoyfreshair Tel:0086-13573263229
Mob:0086-13573263229 Whatsapp:008613573263229
Wechat: 008613573263229
http://www.sinosummit.cn
http://www.sinosummit.com.cn
