MN4275A Electrical Safety Compliance Analyzer

Electrical Safety Compliance Analyzer

1. Electrical Safety Compliance Analyzer performance

(1)Five combined tests on GND, IR, ACW, LLT and Power save  manpower.

(2) Fast test. The six tests can be done in 5 seconds to the fastest.

(3) High test precision. Basic precision of safety test is up to 1.5%, while electric parameter test is Grade-0.5.

(4) Test voltage and current can be controlled to ramp and descent (Time setting is adjustable), so as to meet different test demands.

(5) Key indicators can be set with high and low limit. Automatic diagnosis helps to prevent missed test; intelligent analysis on failure test as well as audible and visual alarm can be provided.

(6) Built-out power supply. Output voltage and frequency can be set as required to meet domestic and oversea test demands for LLT and Power test.

(7) There are 50 test units, and each unit contains 8 test steps. Programming can be made between units. Test can be taken in single step or continuously, available for test after second startup.

(8) 320*240 dot matrix LCD provides intelligent analysis and audible and visible alarm.

(9) Interface has multiple functions which are matched with automatic test requirements; different communication addresses can be set up to make network management easier.

(10) Circuit offset function.

(11) English Menu and cursor prompt help user understand easily. Numeric keyboard makes setting more convenient.

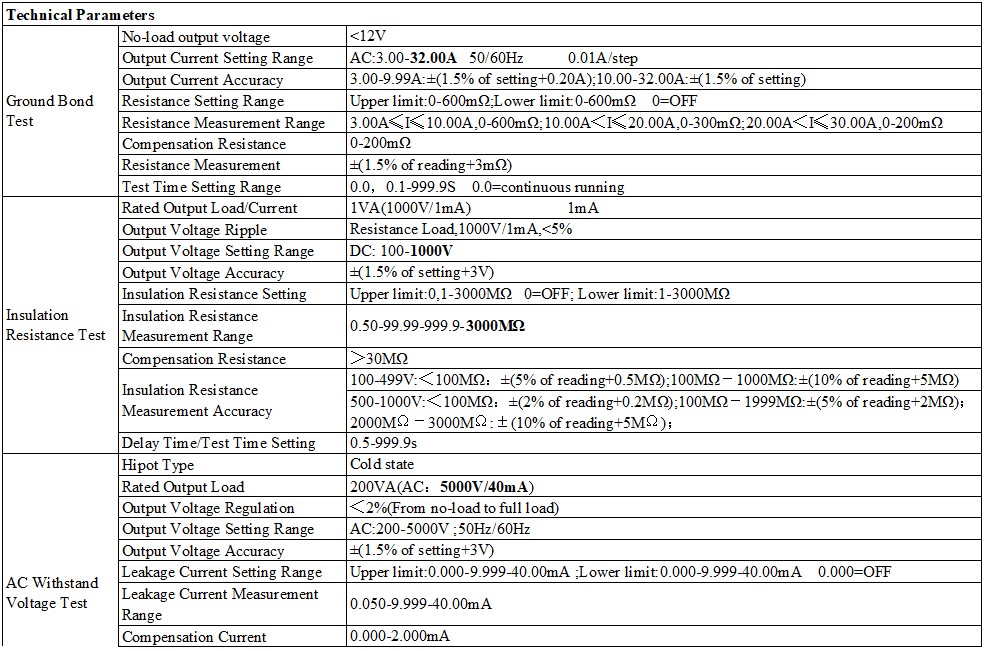

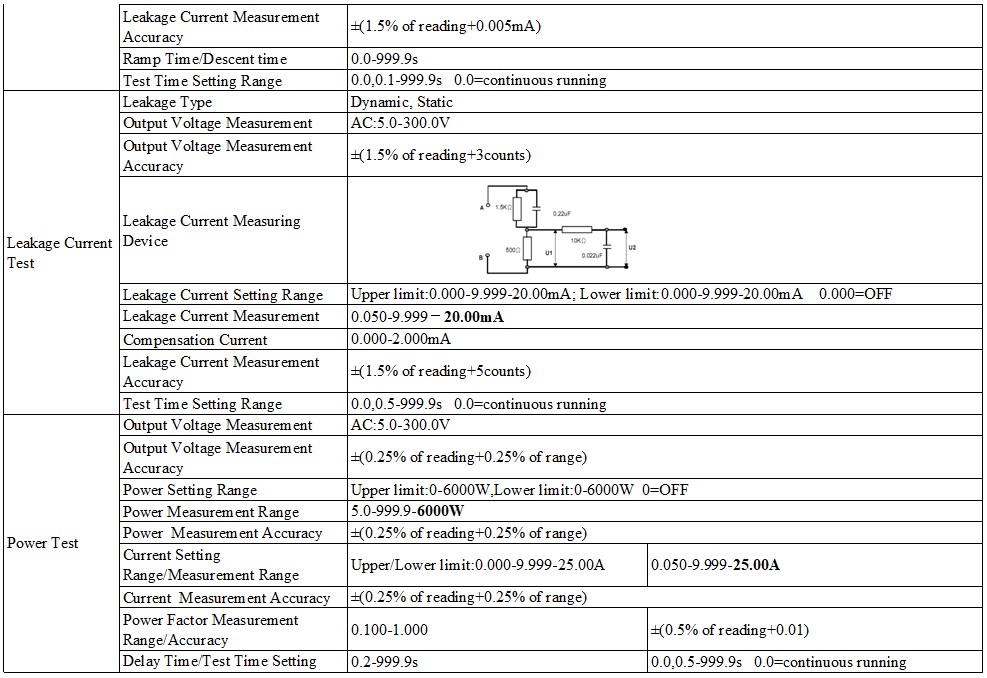

2. Electrical Safety Compliance Analyzer data

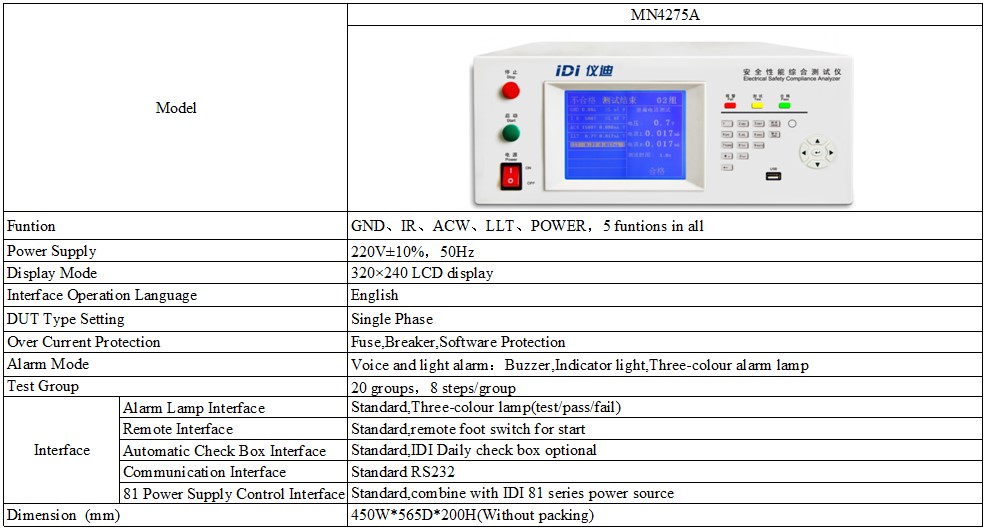

3.Product introduction
