Hot Galvanized Steel Wire Rope 6×19S Steel Wire Rope

Share to:

Hot Galvanized Steel Wire Rope 6×19S Steel Wire Rope

6×19s steel wire rope STAINLESS STEEL AISI304 CARBON STEEL SURFACE: GALVANIZED OR UNGALVANIZED

Availability:



Inquire Add to Basket

Product Description

Hot Galvanized Steel Wire Rope 6×19S Steel Wire Rope

1. Steel wire rope data

Line Contacted Wire Rope

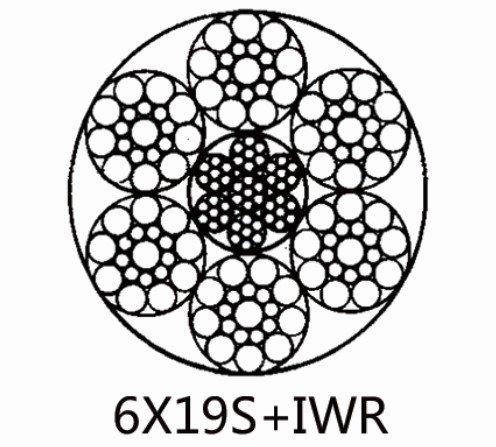

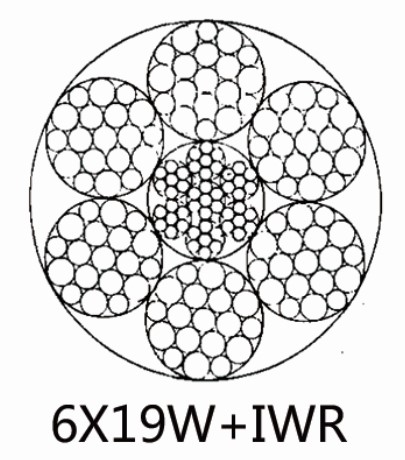

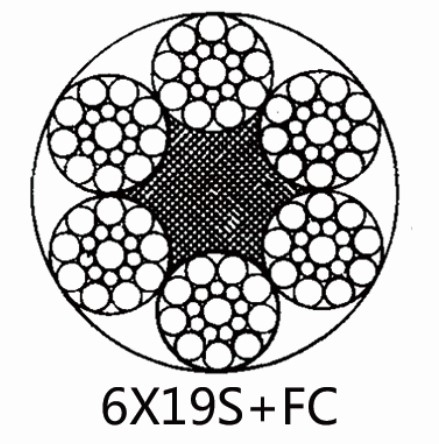

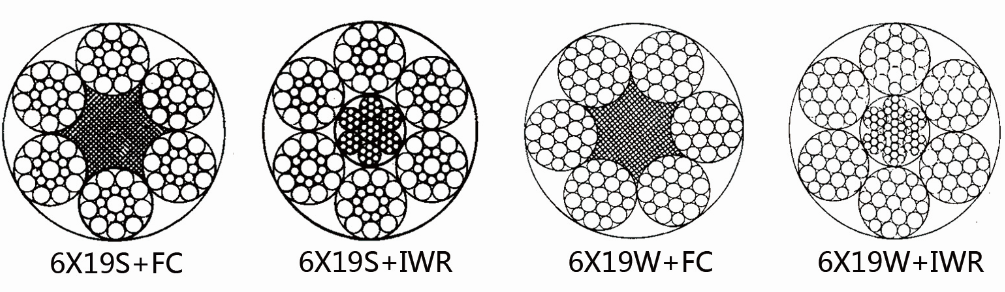

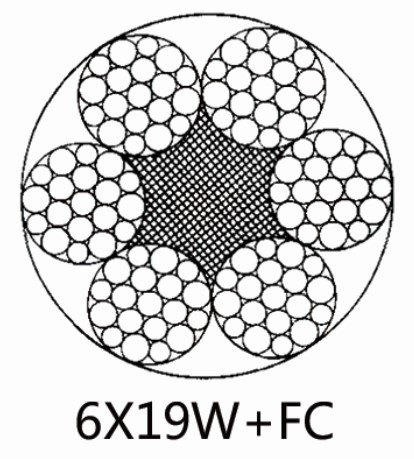

6×19S+FC; 6×19S+IWR; 6×19W+FC; 6×19W+IWR

STAINLESS STEEL AISI316
STAINLESS STEEL AISI304

CARBON STEEL

SURFACE: GALVANIZED OR UNGALVANIZED

Nominal diameter (mm)	Reference weight(kg/100m)			Tensile strength(Mpa)
				1570		1670		1770		1870		1960		2160
				Minimum breaking force(KN)
	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
6	13.3	13.0	14.6	18.7	20.1	19.8	21.4	21	22.7	22.2	24	23.3	25.1	25.7	27.7
7	18.1	17.6	19.9	25.4	27.4	27	29.1	28.6	30.9	30.2	32.6	31.7	34.2	34.9	37.7
8	23.6	23	25.9	33.2	35.8	35.3	38	37.4	40.3	39.5	42.6	41.4	44.6	35.6	49.2
9	29.9	29.1	32.8	42	45.3	44.6	48.2	47.3	51	50	53.9	52.4	56.5	57.7	62.3
10	36.9	36	40.6	51.8	55.9	55.1	59.5	58.4	63	61.7	66.6	64.7	69.8	71.3	76.9
11	44.6	43.5	49.1	62.7	67.6	66.7	71.9	70.7	76.2	74.7	80.6	78.3	84.4	86.2	93
12	53.1	51.8	58.4	74.6	80.5	79.4	85.6	84.1	90.7	88.9	95.9	93.1	100	103	111
13	62.3	60.8	68.5	87.6	94.5	93.1	100	98.7	106	104	113	109	118	120	130
14	72.2	70.5	79.5	102	110	108	117	114	124	121	130	127	137	140	151
16	94.4	92.1	104	133	143	141	152	150	161	158	170	166	179	182	197
18	119	117	131	168	181	179	193	189	204	200	216	210	226	231	249
20	147	144	162	207	224	220	238	234	252	247	266	259	279	285	308
22	178	174	196	251	271	267	288	283	305	299	322	313	338	345	372
24	212	207	234	298	322	317	342	336	363	355	383	373	402	411	443
26	249	243	274	350	378	373	402	395	426	417	450	437	472	482	520
28	289	282	348	406	438	432	466	458	494	484	522	507	547	559	603
30	332	324	365	466	503	496	535	526	567	555	599	582	628	642	692
32	377	369	415	531	572	564	609	598	645	632	682	662	715	730	787
34	426	416	469	599	646	637	687	675	728	713	770	748	807	824	889
36	478	466	525	671	724	714	770	757	817	800	863	838	904	924	997
38	532	520	585	748	807	796	858	843	910	891	961	934	1010	1030	1110
40	590	576	649	829	894	882	951	935	1010	987	1070	1030	1120	1140	1230

Note: Other diameters and standards available on demand (ASTM/BS/EN/DIN/ISO/JIS G/KSD/GB).

2. Steel Wire Rope Application Introduction

Application	Name	Construction
Hoisting to Well	Triangle strand wire rope	6V×37S; 6V×37; 6V×34; 6V×30; 6V×43; 6V×21
	Linear contact lay wire rope	6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS
	Multi-layer steel wire rope	18×7; 17×7; 35W×7; 24W×7
	Multi-layer steel wire rope	6Q×19+6V×21; 6Q×33+6V×21
Hoisting to Well (Building well)	Multi-layer steel wire rope and irregular strand wire rope	6Q×33+6V×21; 17×7;18×7; 34×7; 36×7; 6Q×19+6V×21; 4V×39S;4V×48S; 35W×7;24W×7
Balanced wire rope to Well	Wire rope	6×37S;6×36WS; 4V×39S;4V×48S
Balanced wire rope to Well	Multi-layer steel wire rope	18×7; 17×7; 34×7; 36×7;35W×7; 24W×7
Hoisting to Inclined Well(Winch)	Triangle strand wire rope	6V×18; 6V×19
Hoisting to Inclined Well(Winch)	Wire rope	6 ×7; 6×9W
Drilling for oil	Linear contact lay wire rope	6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS
Excavator(hoisting of electrical shovel	Linear contact lay wire rope	6×19S+IWR; 6×19W+IWR; 6×25Fi+IWR; 6×29R+IWR; 6×26WS+IWR; 6×31WS+IWR; 6×36WS+IWR; 6×55SW+IWR; 6×49SW+IWR; 35W×7.
Crane	Linear contact lay wire rope	6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×41WS
Heat moving steel machine	Linear contact lay wire rope	6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×29Fi+IWR; 6×31WS+IWR; 6×37S+IWR; 6×36WS+IWR
Loading and unloading	Linear contact lay wire rope	6×19W; 6×25Fi; 6×29Fi; 6×31WS; 6×36WS; 6×37S
Tugboat, net	Wire rope	6×31WS; 6×36WS; 6×37S
Mast and crane	Wire rope	6×7+IWS; 6×19S+IWR
Rescuing vessel	Wire rope	6×37S; 6×36WS; 6×41WS; 6×49SWS; 6×31WS; 8×19S; 8×19W

3. Different Product Surface Available

Aluminum material surface	Stainless steel material surface	Steel material surface
Clear Anodized	Polishing	Zinc plating
Color Anodized	Passivating	Oxide black
Sandblast Anodized	Sandblasting	Nickel plating
Chemical Film	Laser engraving	Chrome plating
Brushing	Electric pulse black	Carburized
Polishing		Hot galvanized
Chroming		Powder Coated

Surface finish.png

4. Product introduction

Material	STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY
Size	Different size available
Surface	Polished or zinc plated or nickel or chromed or self-color
Usage	marine, bag or pet accessories etc.
MOQ	No MOQ
Capacity	100000pcs/Month
Package	clean poly bags in cartons and then on pallets or as customer requirements
Sample time	3 days
Lead time	10-30 days based on the order quantity
Payment Terms	30% deposit in advance, 70% before shipment
Payment methods	T/T or Western Union
QC	100% inspect before packing, Spot inspect before shipping
After-sale services	24 hours reply and free charge exchange goods
