Ungalvanized Steel Wire Rope Carbon Steel Wire Rope For Elevators Price

Share to:

Ungalvanized Steel Wire Rope Carbon Steel Wire Rope For Elevators Price

8×19s steel wire rope STAINLESS STEEL AISI304 CARBON STEEL SURFACE: GALVANIZED OR UNGALVANIZED

Availability:



Inquire Add to Basket

Product Description

Ungalvanized Steel Wire Rope Carbon Steel Wire Rope For Elevators Price

1. Steel wire rope data

steel Wire Rope For Elevator

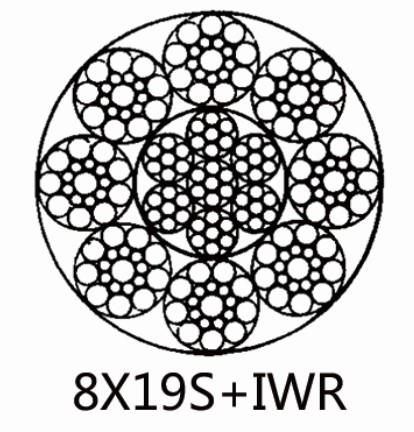

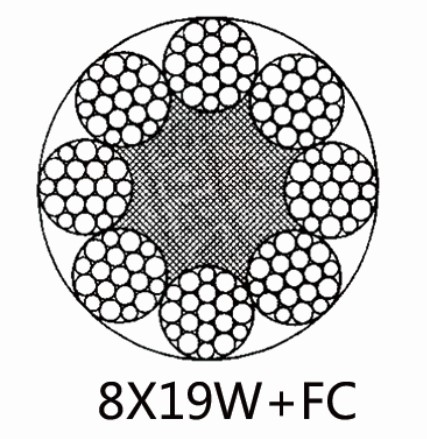

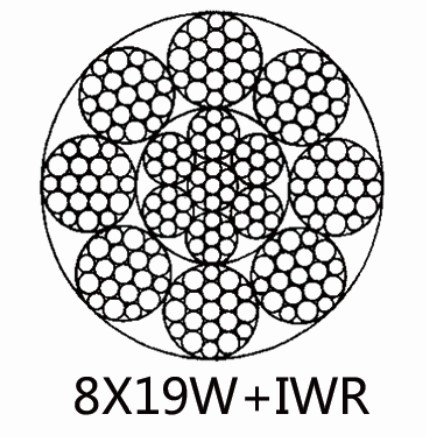

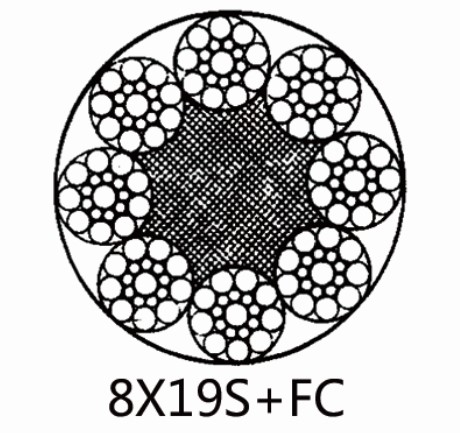

8×19S+FC; 8×19S+IWR; 8×19W+FC; 8×19W+IWR

STAINLESS STEEL AISI316
STAINLESS STEEL AISI304

CARBON STEEL

SURFACE: GALVANIZED OR UNGALVANIZED

Nominal diameter (mm)	Reference weight(kg/100m)			Tensile strength(Mpa)
				1570		1670		1770		1870		1960		2160
				Minimum breaking force(KN)
	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
10	34.6	33.4	42.2	46	54.3	48.9	57.8	51.9	61.2	54.8	64.7	57.4	67.8	63.3	74.7
11	41.9	40.4	51.1	55.7	65.7	59.2	69.9	62.8	74.1	66.3	78.3	69.5	82.1	76.6	90.4
12	49.9	48	60.8	66.2	78.2	70.5	83.2	74.7	88.2	78.9	93.2	82.7	97.7	91.1	108
13	58.5	56.4	71.3	77.7	91.8	82.7	97.7	87.6	103	92.6	109	97.1	115	107	126
14	67.9	65.4	82.7	90.2	106	95.9	113	102	120	107	127	113	133	124	146
16	88.7	85.4	108	118	139	125	148	133	157	140	166	147	174	162	191
18	112	108	137	149	176	159	187	168	198	178	210	186	220	205	242
20	139	133	169	184	217	196	231	207	245	219	259	230	271	253	299
22	168	162	204	223	263	237	280	251	296	265	313	278	328	306	362
24	199	192	243	265	313	282	333	299	353	316	373	331	391	365	430
26	234	226	285	311	367	331	391	351	414	370	437	388	458	428	505
28	271	262	331	361	426	384	453	407	480	430	507	450	532	496	586
30	312	300	380	414	489	440	520	467	551	493	582	517	610	570	673
32	355	342	432	471	556	501	592	531	627	561	663	588	694	648	765
34	400	386	488	532	628	566	668	600	708	633	748	664	784	732	864
36	449	432	547	596	704	634	749	672	794	710	839	744	879	820	969
38	500	482	609	664	784	707	834	749	884	791	934	829	979	914	1080
40	554	534	675	736	869	783	925	830	980	877	1040	919	1090	1010	1200
42	611	589	744	811	958	863	1020	915	1080	967	1140	1010	1200	1120	1320
44	670	646	817	891	1050	947	1120	1000	1190	1060	1250	1110	1310	1230	1450
46	733	706	893	973	1150	1040	1220	1100	1300	1160	1370	1220	1430	1340	1580
48	798	769	972	1060	1250	1130	1330	1190	1410	1260	1490	1320	1560	1460	1720

Note: Other diameters and standards available on demand (ASTM/BS/EN/DIN/ISO/JIS G/KSD/GB)

2. Steel Wire Rope Application Introduction

Application	Name	Construction
Hoisting to Well	Triangle strand wire rope	6V×37S; 6V×37; 6V×34; 6V×30; 6V×43; 6V×21
	Linear contact lay wire rope	6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS
	Multi-layer steel wire rope	18×7; 17×7; 35W×7; 24W×7
	Multi-layer steel wire rope	6Q×19+6V×21; 6Q×33+6V×21
Hoisting to Well (Building well)	Multi-layer steel wire rope and irregular strand wire rope	6Q×33+6V×21; 17×7;18×7; 34×7; 36×7; 6Q×19+6V×21; 4V×39S;4V×48S; 35W×7;24W×7
Balanced wire rope to Well	Wire rope	6×37S;6×36WS; 4V×39S;4V×48S
Balanced wire rope to Well	Multi-layer steel wire rope	18×7; 17×7; 34×7; 36×7;35W×7; 24W×7
Hoisting to Inclined Well(Winch)	Triangle strand wire rope	6V×18; 6V×19
Hoisting to Inclined Well(Winch)	Wire rope	6 ×7; 6×9W
Drilling for oil	Linear contact lay wire rope	6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS
Excavator(hoisting of electrical shovel	Linear contact lay wire rope	6×19S+IWR; 6×19W+IWR; 6×25Fi+IWR; 6×29R+IWR; 6×26WS+IWR; 6×31WS+IWR; 6×36WS+IWR; 6×55SW+IWR; 6×49SW+IWR; 35W×7.
Crane	Linear contact lay wire rope	6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×41WS
Heat moving steel machine	Linear contact lay wire rope	6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×29Fi+IWR; 6×31WS+IWR; 6×37S+IWR; 6×36WS+IWR
Loading and unloading	Linear contact lay wire rope	6×19W; 6×25Fi; 6×29Fi; 6×31WS; 6×36WS; 6×37S
Tugboat, net	Wire rope	6×31WS; 6×36WS; 6×37S
Mast and crane	Wire rope	6×7+IWS; 6×19S+IWR
Rescuing vessel	Wire rope	6×37S; 6×36WS; 6×41WS; 6×49SWS; 6×31WS; 8×19S; 8×19W

3. Different Product Surface Available

Aluminum material surface	Stainless steel material surface	Steel material surface
Clear Anodized	Polishing	Zinc plating
Color Anodized	Passivating	Oxide black
Sandblast Anodized	Sandblasting	Nickel plating
Chemical Film	Laser engraving	Chrome plating
Brushing	Electric pulse black	Carburized
Polishing		Hot galvanized
Chroming		Powder Coated

Surface finish.png

4. Product introduction

Material	STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY
Size	Different size available
Surface	Polished or zinc plated or nickel or chromed or self-color
Usage	marine, bag or pet accessories etc.
MOQ	No MOQ
Capacity	100000pcs/Month
Package	clean poly bags in cartons and then on pallets or as customer requirements
Sample time	3 days
Lead time	10-30 days based on the order quantity
Payment Terms	30% deposit in advance, 70% before shipment
Payment methods	T/T or Western Union
QC	100% inspect before packing, Spot inspect before shipping
After-sale services	24 hours reply and free charge exchange goods
We provide the premium quality products with competitive price for every customer!
