Ungalvanized Steel Wire Rope 6×37 Steel Wire Rope

Share to:

Ungalvanized Steel Wire Rope 6×37 Steel Wire Rope

6×37 Steel Wire Rope STAINLESS STEEL AISI304 CARBON STEEL SURFACE: GALVANIZED OR UNGALVANIZED

Availability:



Inquire Add to Basket

Product Description

Ungalvanized Steel Wire Rope 6×37 Steel Wire Rope

1. Steel wire rope data

Line Contacted Wire Rope

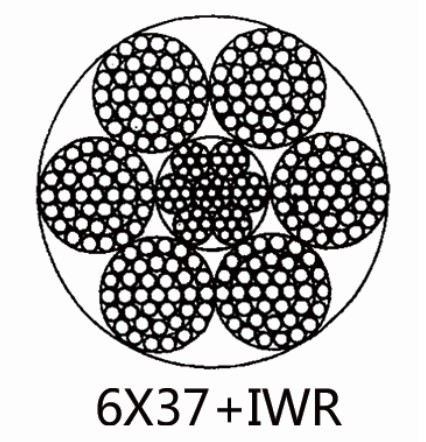

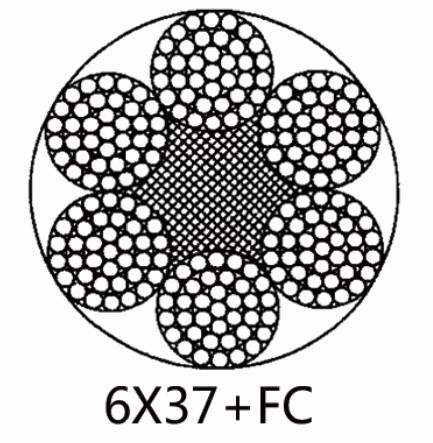

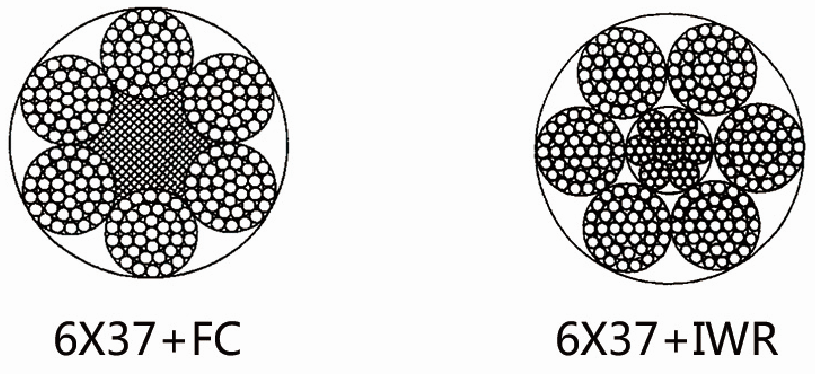

6×37+FC; 6×37+IWR

STAINLESS STEEL AISI316
STAINLESS STEEL AISI304

CARBON STEEL

SURFACE: GALVANIZED OR UNGALVANIZED

Nominal diameter (mm)	Reference weight(kg/100m)			Tensile strength(Mpa)
				1570		1670		1770		1870
				Minimum breaking force(KN)
	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
5.0	8.65	8.43	10	11.6	12.5	12.3	13.3	13.1	14.1	13.8	14.9
6.0	12.5	12.1	14.4	16.7	18	17.7	19.2	18.8	20.3	19.9	21.5
7.0	17	16.5	19.6	22.7	24.5	24.1	26.1	25.6	27.7	27	29.2
8.0	22.1	21.6	25.6	29.6	32.1	31.5	34.1	33.4	36.1	35.3	38.2
9.0	28	27.3	32.4	37.5	40.6	39.9	43.2	42.3	45.7	44.7	48.3
10.0	34.6	33.7	40	46.3	50.1	49.3	53.3	52.2	56.5	55.2	59.7
11.0	41.9	40.8	48.4	56	60.6	59.6	64.5	63.2	68.3	66.7	72.2
12.0	49.8	48.5	57.6	66.7	72.1	70.9	76.7	75.2	81.3	79.4	85.9
13.0	58.5	57	67.6	78.3	84.6	83.3	90	88.2	95.4	93.2	101
14.0	67.8	66.1	78.4	90.8	98.2	96.6	104	102	111	108	117
16.0	88.6	86.3	102	119	128	126	136	134	145	141	153
18.0	112	109	130	150	162	160	173	169	183	179	193
20.0	138	135	160	185	200	197	213	209	226	221	239
22.0	167	163	194	224	242	238	258	253	273	267	289
24.0	199	194	230	267	288	284	307	301	325	318	344
26.0	234	228	270	313	339	333	360	353	382	373	403
28.0	271	264	314	363	393	386	418	409	443	432	468
30.0	311	303	360	417	451	443	479	470	508	496	537
32.0	354	345	410	474	513	504	546	535	578	565	611
34.0	400	390	462	535	579	570	616	604	653	638	690
36.0	448	437	518	600	649	638	690	677	732	715	773
38.0	500	487	578	669	723	711	769	754	815	797	861
40.0	554	539	640	741	801	788	852	835	903	883	954
42.0	610	594	706	817	883	869	940	921	996	973	1050
44.0	670	652	774	897	970	954	1030	1010	1090	1070	1150
46.0	732	713	846	980	1060	1040	1130	1100	1190	1170	1260
48.0	797	776	922	1070	1150	1140	1230	1200	1300	1270	1370
50.0	865	843	1000	1160	1250	1230	1330	1300	1410	1380	1490
52.0	936	911	1080	1250	1350	1330	1440	1410	1530	1490	1610
54.0	1010	983	1170	1350	1460	1440	1550	1520	1650	1610	1740
56.0	1090	1060	1250	1450	1570	1540	1670	1640	1770	1730	1870
58.0	1160	1130	1350	1560	1680	1660	1790	1760	1900	1860	2010
60.0	1250	1210	1440	1670	1800	1770	1920	1880	2030	1990	2150

Note: Other diameters and standards available on demand (ASTM/BS/EN/DIN/ISO/JIS G/KSD/GB).

2. Steel Wire Rope Application Introduction

Application	Name	Construction
Hoisting to Well	Triangle strand wire rope	6V×37S; 6V×37; 6V×34; 6V×30; 6V×43; 6V×21
	Linear contact lay wire rope	6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS
	Multi-layer steel wire rope	18×7; 17×7; 35W×7; 24W×7
	Multi-layer steel wire rope	6Q×19+6V×21; 6Q×33+6V×21
Hoisting to Well (Building well)	Multi-layer steel wire rope and irregular strand wire rope	6Q×33+6V×21; 17×7;18×7; 34×7; 36×7; 6Q×19+6V×21; 4V×39S;4V×48S; 35W×7;24W×7
Balanced wire rope to Well	Wire rope	6×37S;6×36WS; 4V×39S;4V×48S
Balanced wire rope to Well	Multi-layer steel wire rope	18×7; 17×7; 34×7; 36×7;35W×7; 24W×7
Hoisting to Inclined Well(Winch)	Triangle strand wire rope	6V×18; 6V×19
Hoisting to Inclined Well(Winch)	Wire rope	6 ×7; 6×9W
Drilling for oil	Linear contact lay wire rope	6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS
Excavator(hoisting of electrical shovel	Linear contact lay wire rope	6×19S+IWR; 6×19W+IWR; 6×25Fi+IWR; 6×29R+IWR; 6×26WS+IWR; 6×31WS+IWR; 6×36WS+IWR; 6×55SW+IWR; 6×49SW+IWR; 35W×7.
Crane	Linear contact lay wire rope	6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×41WS
Heat moving steel machine	Linear contact lay wire rope	6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×29Fi+IWR; 6×31WS+IWR; 6×37S+IWR; 6×36WS+IWR
Loading and unloading	Linear contact lay wire rope	6×19W; 6×25Fi; 6×29Fi; 6×31WS; 6×36WS; 6×37S
Tugboat, net	Wire rope	6×31WS; 6×36WS; 6×37S
Mast and crane	Wire rope	6×7+IWS; 6×19S+IWR
Rescuing vessel	Wire rope	6×37S; 6×36WS; 6×41WS; 6×49SWS; 6×31WS; 8×19S; 8×19W

3. Different Product Surface Available

Aluminum material surface	Stainless steel material surface	Steel material surface
Clear Anodized	Polishing	Zinc plating
Color Anodized	Passivating	Oxide black
Sandblast Anodized	Sandblasting	Nickel plating
Chemical Film	Laser engraving	Chrome plating
Brushing	Electric pulse black	Carburized
Polishing		Hot galvanized
Chroming		Powder Coated

Surface finish.png

4. Product introduction

Material	STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY
Size	Different size available
Surface	Polished or zinc plated or nickel or chromed or self-color
Usage	marine, bag or pet accessories etc.
MOQ	No MOQ
Capacity	100000pcs/Month
Package	clean poly bags in cartons and then on pallets or as customer requirements
Sample time	3 days
Lead time	10-30 days based on the order quantity
Payment Terms	30% deposit in advance, 70% before shipment
Payment methods	T/T or Western Union
QC	100% inspect before packing, Spot inspect before shipping
After-sale services	24 hours reply and free charge exchange goods
We provide the premium quality products with competitive price for every customer!
