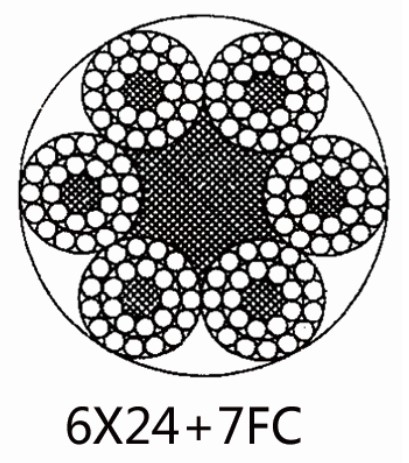

Stainless Steel Wire Rope 6×24+7FC Steel Wire Rope
1. Steel wire rope data

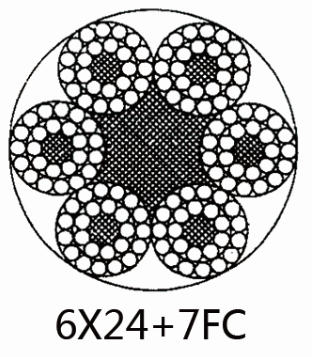

6×24+7FC
STAINLESS STEEL AISI316
STAINLESS STEEL AISI304
CARBON STEEL
SURFACE: GALVANIZED OR UNGALVANIZED
Nominal diameter (mm) | Reference weight(kg/100m) | Tensile strength(Mpa) | ||||
1470 | 1570 | 1670 | 1770 | |||
NF | SF | Minimum breaking force(KN) | ||||
8.0 | 20.4 | 19.5 | 26.3 | 28.1 | 29.9 | 31.7 |
9.0 | 25.8 | 24.6 | 33.3 | 35.6 | 37.9 | 40.1 |
10.0 | 31.8 | 30.4 | 41.2 | 44.0 | 46.8 | 49.6 |
11.0 | 38.5 | 36.8 | 49.8 | 53.2 | 56.6 | 60.0 |
12.0 | 45.8 | 43.8 | 59.3 | 63.3 | 67.3 | 71.4 |
13.0 | 53.7 | 51.4 | 69.6 | 74.3 | 79.0 | 83.8 |
14.0 | 62.3 | 59.6 | 80.7 | 86.2 | 91.6 | 97.1 |
16.0 | 81.4 | 77.8 | 105 | 113 | 120 | 127 |
18.0 | 103 | 98.5 | 133 | 142 | 152 | 161 |
20.0 | 127 | 122 | 165 | 176 | 187 | 198 |
22.0 | 154 | 147 | 199 | 213 | 226 | 240 |
24.0 | 183 | 175 | 237 | 253 | 269 | 285 |
26.0 | 215 | 206 | 278 | 297 | 316 | 335 |
28.0 | 249 | 238 | 323 | 345 | 367 | 389 |
30.0 | 286 | 274 | 370 | 396 | 421 | 446 |
32.0 | 326 | 311 | 421 | 450 | 479 | 507 |
34.0 | 368 | 351 | 476 | 508 | 541 | 573 |
36.0 | 412 | 394 | 533 | 570 | 606 | 642 |
38.0 | 459 | 439 | 594 | 635 | 675 | 716 |
40.0 | 509 | 486 | 659 | 703 | 748 | 793 |
Note: Other diameters and standards available on demand (ASTM/BS/EN/DIN/ISO/JIS G/KSD/GB).
2. Steel Wire Rope Application Introduction
Application | Name | Construction |
Hoisting to Well | Triangle strand wire rope | 6V×37S; 6V×37; 6V×34; 6V×30; 6V×43; 6V×21 |
Linear contact lay wire rope | 6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS | |
Multi-layer steel wire rope | 18×7; 17×7; 35W×7; 24W×7 | |
6Q×19+6V×21; 6Q×33+6V×21 | ||
Hoisting to Well (Building well) | Multi-layer steel wire rope and irregular strand wire rope | 6Q×33+6V×21; 17×7;18×7; 34×7; 36×7; 6Q×19+6V×21; 4V×39S;4V×48S; 35W×7;24W×7 |
Balanced wire rope to Well | Wire rope | 6×37S;6×36WS; 4V×39S;4V×48S |
Multi-layer steel wire rope | 18×7; 17×7; 34×7; 36×7;35W×7; 24W×7 | |
Hoisting to Inclined Well(Winch) | Triangle strand wire rope | 6V×18; 6V×19 |
Wire rope | 6×7; 6×9W | |
Drilling for oil | Linear contact lay wire rope | 6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS |
Excavator(hoisting of electrical shovel | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25Fi+IWR; 6×29R+IWR; 6×26WS+IWR; 6×31WS+IWR; 6×36WS+IWR; 6×55SW+IWR; 6×49SW+IWR; 35W×7. |
Crane | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×41WS |
Heat moving steel machine | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×29Fi+IWR; 6×31WS+IWR; 6×37S+IWR; 6×36WS+IWR |
Loading and unloading | Linear contact lay wire rope | 6×19W; 6×25Fi; 6×29Fi; 6×31WS; 6×36WS; 6×37S |
Tugboat, net | Wire rope | 6×31WS; 6×36WS; 6×37S |
Mast and crane | Wire rope | 6×7+IWS; 6×19S+IWR |
Rescuing vessel | Wire rope | 6×37S; 6×36WS; 6×41WS; 6×49SWS; 6×31WS; 8×19S; 8×19W |
3. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
4. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! | |

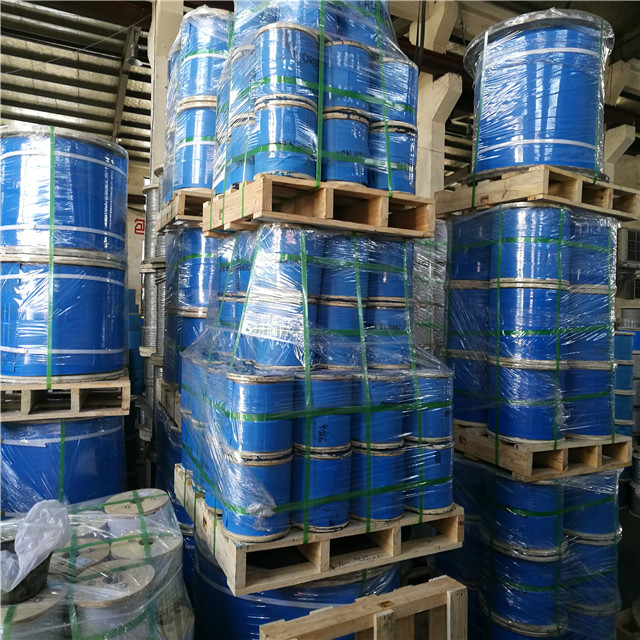

5. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
6.Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools

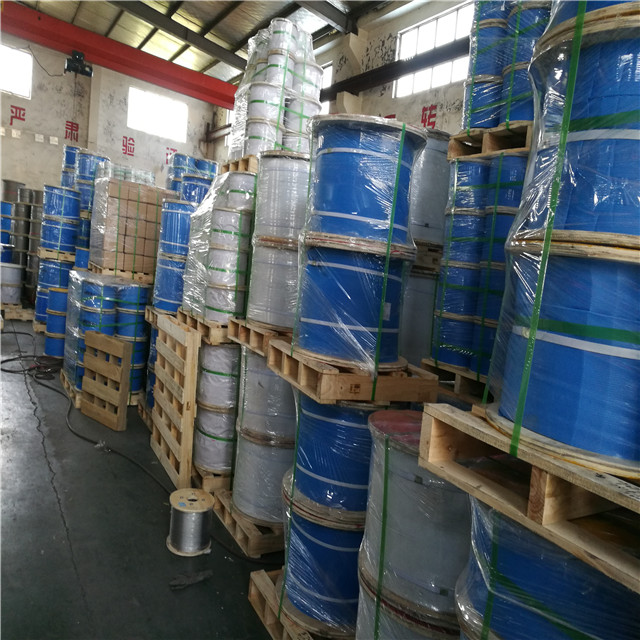

d. Storeroom&Contain Filling
7. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
