1×7 Steel Wire Rope or Stainless Steel Wire Rope 1x19

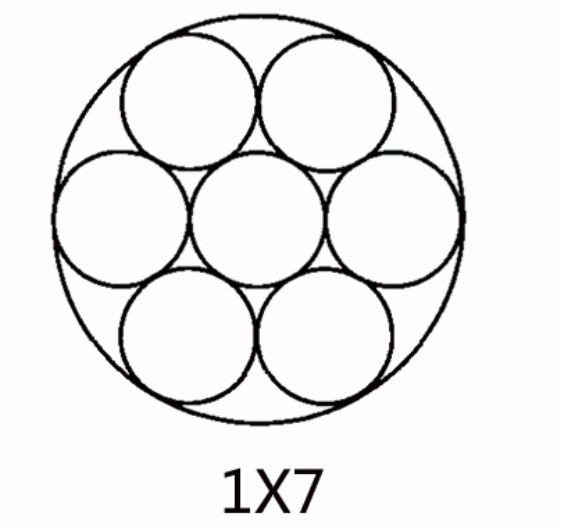

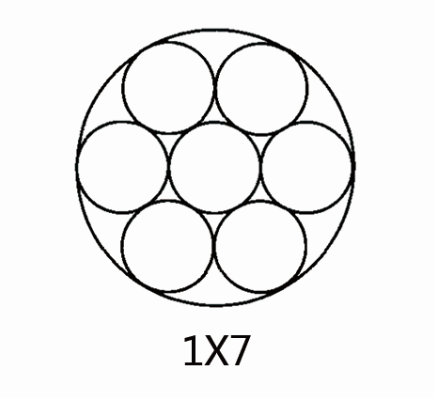

1.1 1*7 Steel wire rope data
Steel strand diameter(mm) | Reference weight(kg/100m) | Tensile strength(Mpa) | |||
1570 | 1670 | 1770 | 1870 | ||
Minimum breaking force(KN) | |||||
0.6 | 0.19 | 0.31 | 0.32 | 0.34 | 0.36 |
1.2 | 0.75 | 1.22 | 1.3 | 1.38 | 1.45 |
1.5 | 1.17 | 1.91 | 2.03 | 2.15 | 2.27 |
1.8 | 1.69 | 2.75 | 2.92 | 3.10 | 3.27 |
2.1 | 2.30 | 3.74 | 3.98 | 4.22 | 4.45 |
2.4 | 3.01 | 4.88 | 5.19 | 5.51 | 5.82 |
2.7 | 3.8 | 6.18 | 6.57 | 6.97 | 7.36 |
3.0 | 4.7 | 7.63 | 8.12 | 8.60 | 9.09 |
3.3 | 5.68 | 9.23 | 9.82 | 10.4 | 11.0 |
3.6 | 6.77 | 11.0 | 11.7 | 12.4 | 13.1 |
3.9 | 7.94 | 12.9 | 13.7 | 14.5 | 15.4 |
4.2 | 9.21 | 15.0 | 15.9 | 16.9 | 17.8 |
4.5 | 10.6 | 17.2 | 18.3 | 19.4 | 20.4 |
4.8 | 12.0 | 19.5 | 20.8 | 22.0 | 23.3 |
5.1 | 13.6 | 22.1 | 23.5 | 24.9 | 26.3 |
5.4 | 15.2 | 24.7 | 26.3 | 27.9 | 29.4 |
6.0 | 18.8 | 30.5 | 32.5 | 34.4 | 36.4 |
6.6 | 22.7 | 36.9 | 39.3 | 41.6 | 44.0 |
7.2 | 27.1 | 43.9 | 46.7 | 49.5 | 52.3 |
7.8 | 31.8 | 51.6 | 54.9 | 58.2 | 61.4 |
8.4 | 36.8 | 59.8 | 63.6 | 67.4 | 71.3 |
9.0 | 42.3 | 68.7 | 73.0 | 77.4 | 81.8 |
9.6 | 48.1 | 78.1 | 83.1 | 88.1 | 93.1 |
10.5 | 57.6 | 93.5 | 99.4 | 105 | 111 |
11.5 | 59.0 | 112 | 119 | 126 | 134 |
12.0 | 75.2 | 122 | 130 | 138 | 145 |
Note: Other diameters and standards available on demand (ASTM/BS/EN/DIN/ISO/JIS G/KSD/GB).

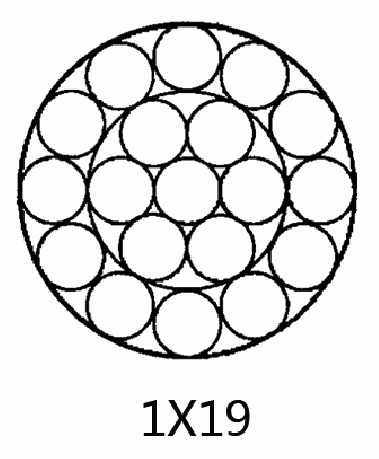

1.2 1*19 Steel Wire Rope
1×19 (Single Rope)
Steel strand diameter(mm) | Reference weight(kg/100m) | Tensile strength(Mpa) | |||
1570 | 1670 | 1770 | 1870 | ||
Minimum breaking force(KN) | |||||
1.0 | 0.51 | 0.83 | 0.89 | 0.94 | 0.99 |
1.5 | 1.14 | 1.87 | 1.99 | 2.11 | 2.23 |
2.0 | 2.03 | 3.33 | 3.54 | 3.75 | 3.96 |
2.5 | 3.17 | 5.2 | 5.53 | 5.86 | 6.19 |
3.0 | 4.56 | 7.49 | 7.97 | 8.44 | 8.92 |
3.5 | 6.21 | 10.2 | 10.8 | 11.5 | 12.1 |
4.0 | 8.11 | 13.3 | 14.2 | 15.0 | 15.9 |
4.5 | 10.3 | 16.9 | 17.9 | 19.0 | 20.1 |
5.0 | 12.7 | 20.8 | 22.1 | 23.5 | 24.8 |
5.5 | 15.3 | 25.2 | 26.8 | 28.4 | 30.0 |
6.0 | 18.3 | 30.0 | 31.9 | 33.8 | 35.7 |
6.5 | 21.4 | 35.2 | 37.4 | 39.6 | 41.9 |
7.0 | 24.8 | 40.8 | 43.4 | 46.0 | 48.6 |
7.5 | 28.5 | 46.8 | 49.8 | 52.8 | 55.7 |
8.0 | 32.4 | 56.6 | 56.6 | 60.0 | 63.4 |
8.5 | 36.6 | 60.1 | 63.9 | 67.8 | 71.6 |
9.0 | 41.1 | 63.2 | 71.7 | 76.0 | 80.3 |
10.0 | 50.7 | 67.4 | 88.6 | 93.8 | 99.1 |
11.0 | 61.3 | 101 | 107 | 114 | 120 |
12.0 | 73.0 | 120 | 127 | 135 | 143. |
13.0 | 85.7 | 141 | 150 | 159 | 167 |
14.0 | 99.4 | 163 | 173 | 184 | 194 |
15.0 | 114 | 187 | 199 | 211 | 223 |
16.0 | 130 | 213 | 227 | 240 | 254 |
Note: Other diameters and standards available on demand (ASTM/BS/EN/DIN/ISO/JIS G/KSD/GB).
2. Steel Wire Rope Application Introduction
Application | Name | Construction |
Hoisting to Well | Triangle strand wire rope | 6V×37S; 6V×37; 6V×34; 6V×30; 6V×43; 6V×21 |
Linear contact lay wire rope | 6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS | |
Multi-layer steel wire rope | 18×7; 17×7; 35W×7; 24W×7 | |
6Q×19+6V×21; 6Q×33+6V×21 | ||
Hoisting to Well (Building well) | Multi-layer steel wire rope and irregular strand wire rope | 6Q×33+6V×21; 17×7;18×7; 34×7; 36×7; 6Q×19+6V×21; 4V×39S;4V×48S; 35W×7;24W×7 |
Balanced wire rope to Well | Wire rope | 6×37S;6×36WS; 4V×39S;4V×48S |
Multi-layer steel wire rope | 18×7; 17×7; 34×7; 36×7;35W×7; 24W×7 | |
Hoisting to Inclined Well(Winch) | Triangle strand wire rope | 6V×18; 6V×19 |
Wire rope | 6×7; 6×9W | |
Drilling for oil | Linear contact lay wire rope | 6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS |
Excavator(hoisting of electrical shovel | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25Fi+IWR; 6×29R+IWR; 6×26WS+IWR; 6×31WS+IWR; 6×36WS+IWR; 6×55SW+IWR; 6×49SW+IWR; 35W×7. |
Crane | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×41WS |
Heat moving steel machine | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×29Fi+IWR; 6×31WS+IWR; 6×37S+IWR; 6×36WS+IWR |
Loading and unloading | Linear contact lay wire rope | 6×19W; 6×25Fi; 6×29Fi; 6×31WS; 6×36WS; 6×37S |
Tugboat, net | Wire rope | 6×31WS; 6×36WS; 6×37S |
Mast and crane | Wire rope | 6×7+IWS; 6×19S+IWR |
Rescuing vessel | Wire rope | 6×37S; 6×36WS; 6×41WS; 6×49SWS; 6×31WS; 8×19S; 8×19W |
3. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
4. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! | |

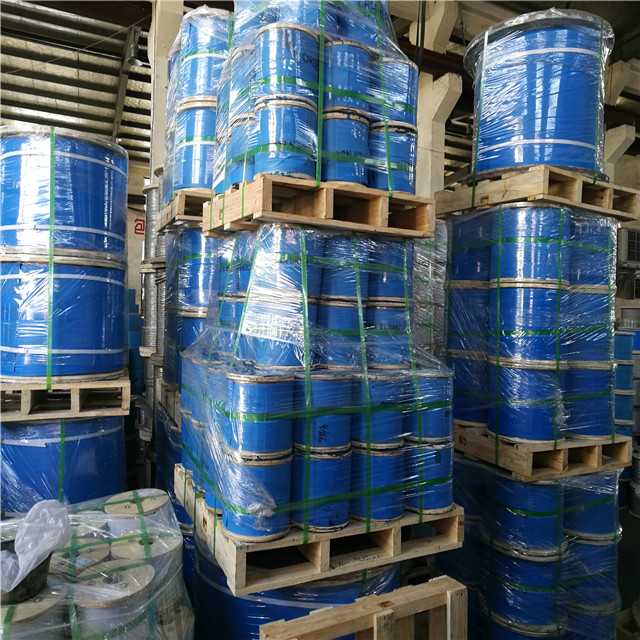

5. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
6.Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools

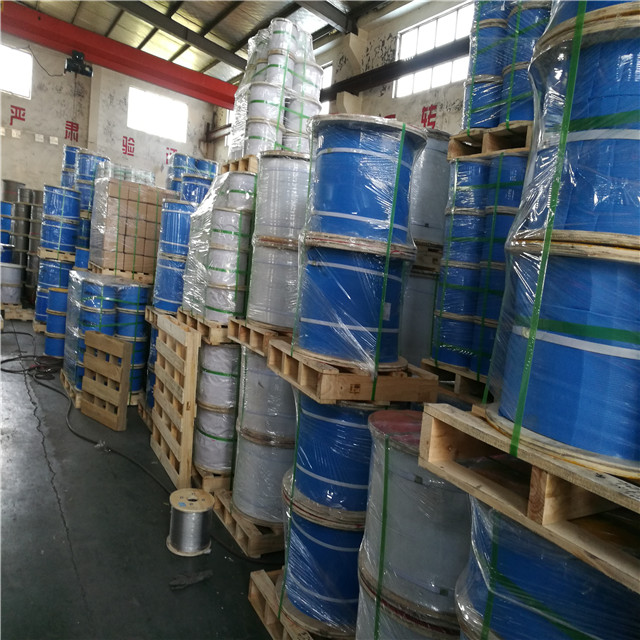

d. Storeroom&Contain Filling
7. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
8.Contact
Mark Wang
International Sales Director
Qingdao Sino Summit Machinery Co., Ltd.
Add: Add: Room 401, Unit 2, Building 9, No. 412 Chongqing Middle Road, Licang District, Qingdao, China
Post Code: 266041
Skype: enjoyfreshair Tel:0086-13573263229
Mob:0086-13573263229 Whatsapp:008613573263229
Wechat: 008613573263229
http://www.sinosummit.cn
http://www.sinosummit.com.cn
