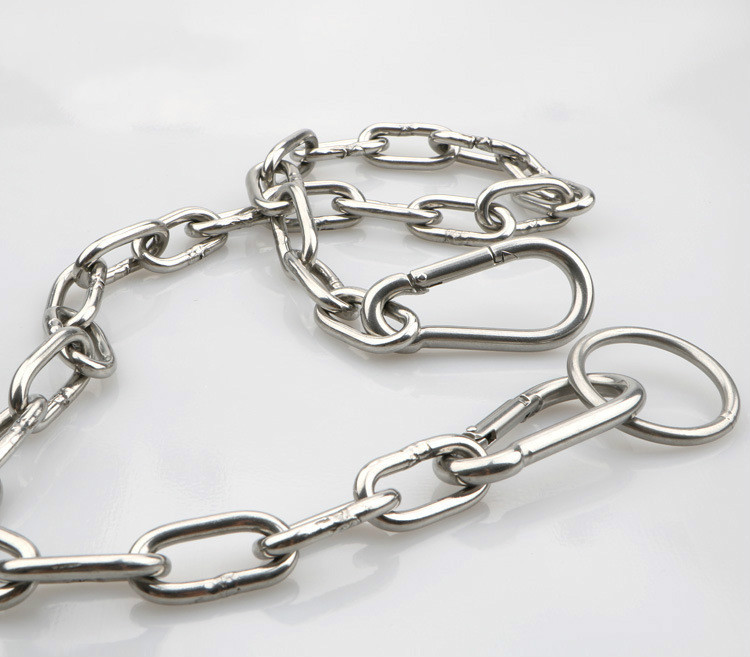

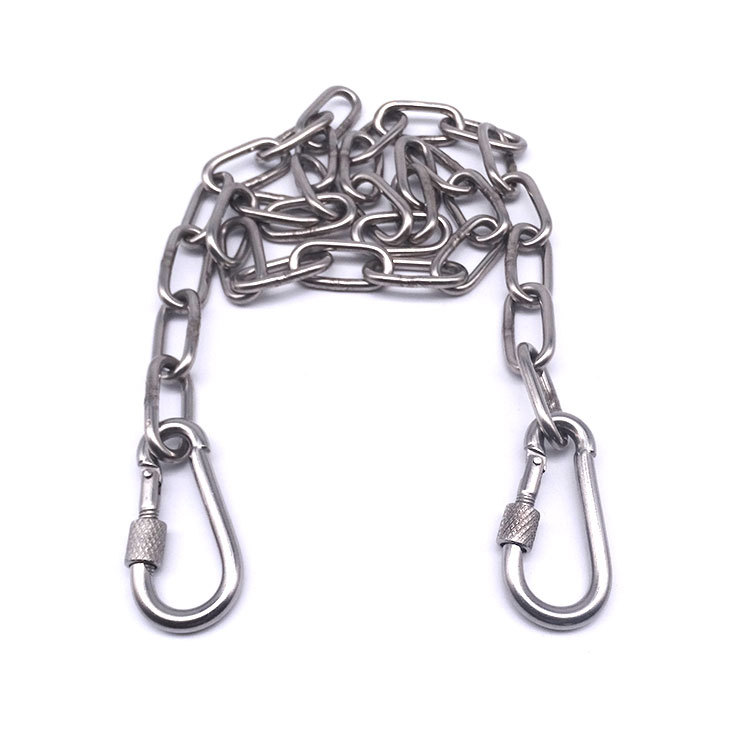

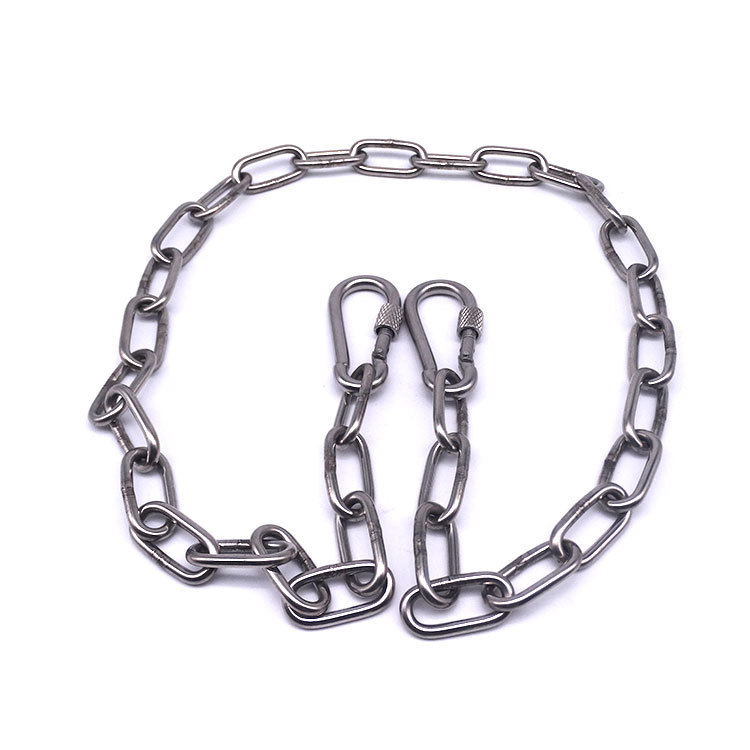

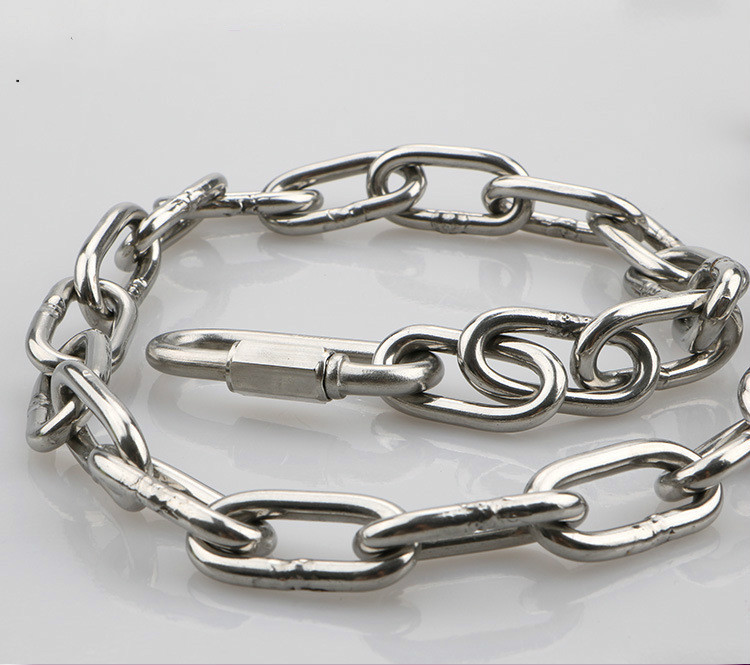

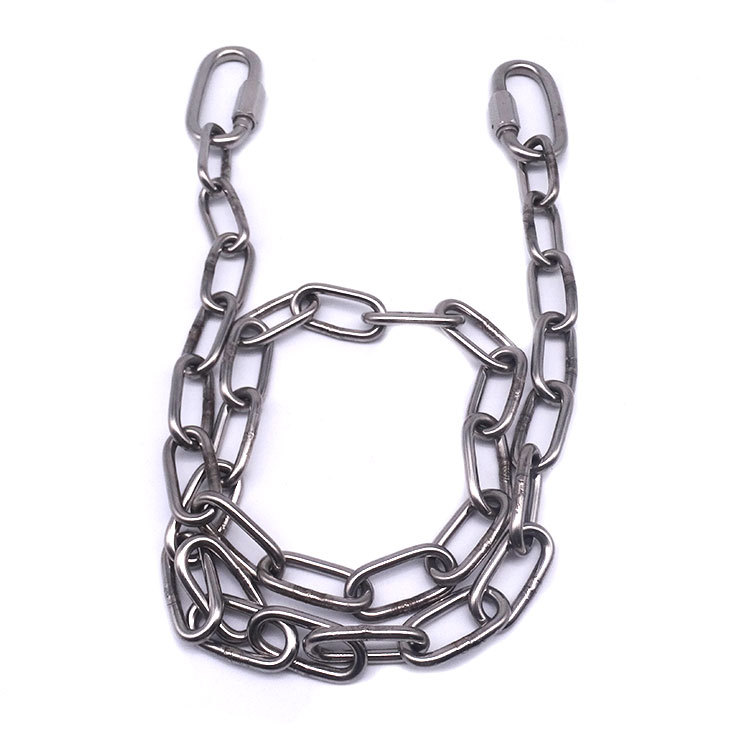

Galvanized Steel Link Chain NACM90 Standard Link Chain Seller
1. NACM90 Standard Link Chain Introduction
PROOF COIL NACM90 (G30)

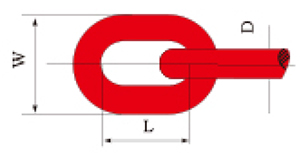

NORMINAL | MATERIAL | WORKING LOAD | PROOF TEST | BREAKING | INSIDE | INSIDE | |||||||
MM | IN | MM | IN | KG | LB | KN | lb | KN | LB | MM | IN | MM | IN |
4.0 | 1/8 | 4.0 | 0.156 | 170 | 375 | 3.6 | 800 | 7.1 | 1600 | 23.9 | 0.94 | 6.4 | 0.25 |
5.5 | 3/16 | 5.5 | 0.217 | 365 | 800 | 7.2 | 1600 | 14.3 | 3200 | 24.8 | 0.98 | 7.7 | 0.30 |
7.0 | 1/4 | 7.0 | 0.276 | 580 | 1300 | 11.6 | 2600 | 23.1 | 5200 | 31.5 | 1.24 | 9.8 | 0.38 |
8.0 | 5/16 | 8.0 | 0.315 | 860 | 1900 | 15.1 | 3400 | 30.2 | 6800 | 32.8 | 1.29 | 11.2 | 0.44 |
10.0 | 3/8 | 10.0 | 0.394 | 1200 | 2650 | 23.6 | 5300 | 47.1 | 10600 | 35.0 | 1.38 | 14.0 | 0.55 |
13.0 | 1/2 | 13.0 | 0.512 | 2030 | 4500 | 39.8 | 8950 | 79.6 | 17900 | 45.5 | 1.79 | 18.2 | 0.72 |
16.0 | 5/8 | 16.0 | 0.630 | 3130 | 6900 | 60.3 | 13600 | 120.6 | 27200 | 56.0 | 2.20 | 20.0 | 0.79 |
20.0 | 3/4 | 20.0 | 0.787 | 4800 | 10600 | 94.3 | 21200 | 188.5 | 42400 | 70.0 | 2.76 | 25.0 | 0.98 |
22.0 | 7/8 | 22.0 | 0.866 | 5810 | 12800 | 114.1 | 25600 | 228.1 | 51200 | 77.0 | 3.03 | 27.5 | 1.08 |
25.0 | 1" | 26.0 | 1.020 | 8140 | 17900 | 159.1 | 35800 | 318.2 | 71600 | 90.9 | 3.58 | 31.7 | 1.25 |
HIGH TEST CHAIN NACM90 (G43)
NORMINAL | MATERIAL | WORKING LOAD | PROOF TEST | BREAKING | INSIDE LENGTH(MAX) | INSIDE WIDTH (MIN) | |||||||
mm | in | mm | in | kg | lb | kn | lb | kn | lb | mm | in | mm | in |
7.0 | 1/4 | 7.0 | 0.276 | 1180 | 2600 | 16.6 | 3750 | 33.1 | 7500 | 31.5 | 1.24 | 9.8 | 0.38 |
8.0 | 5/16 | 8.0 | 0.315 | 1770 | 3900 | 21.6 | 4900 | 43.2 | 9700 | 32.8 | 1.29 | 11.2 | 0.44 |
10.0 | 3/8 | 10.0 | 0.394 | 2450 | 5400 | 33.8 | 7600 | 67.6 | 15200 | 35.0 | 1.38 | 14.0 | 0.55 |
13.0 | 1/2 | 13.0 | 0.512 | 4170 | 9200 | 57.1 | 12900 | 114.2 | 25700 | 45.5 | 1.79 | 18.2 | 0.72 |
16.0 | 5/8 | 16.0 | 0.630 | 5220 | 11500 | 86.5 | 19500 | 172.9 | 38900 | 56.0 | 2.20 | 20.0 | 0.79 |
TRANSPORT CHAIN NACM90 (G70)
NORMINAL | MATERIAL | WORKING LOAD | PROOFTEST | BREAKING | INSIDE LENGTH | INSIDE WIDTH | |||||||
mm | in | mm | in | kg | lb | kn | lb | kn | lb | mm | in | mm | in |
7.0 | 1/4 | 7.0 | 0.276 | 1430 | 3150 | 27.0 | 6100 | 53.9 | 12100 | 31.5 | 1.24 | 9.8 | 0.38 |
8.7 | 5/16 | 8.7 | 0.343 | 2130 | 4700 | 41.6 | 9400 | 83.5 | 18800 | 33.5 | 1.29 | 11.2 | 0.44 |
10.0 | 3/8 | 10.0 | 0.394 | 2990 | 6600 | 55.0 | 12400 | 110.0 | 24700 | 35.0 | 1.38 | 14.0 | 0.55 |
13.0 | 1/2 | 13.0 | 0.512 | 5130 | 11300 | 92.9 | 20900 | 185.8 | 41800 | 45.5 | 1.79 | 18.2 | 0.72 |
16.0 | 5/8 | 16.0 | 0.630 | 7170 | 15800 | 140.4 | 31600 | 280.8 | 63200 | 56.0 | 2.20 | 20.0 | 0.79 |
2. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
3. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! | |
4. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
5.Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
6. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
7.Contact
Mark Wang
International Sales Director
Qingdao Sino Summit Machinery Co., Ltd.
Add: Add: Room 401, Unit 2, Building 9, No. 412 Chongqing Middle Road, Licang District, Qingdao, China
Post Code: 266041
Skype: enjoyfreshair Tel:0086-13573263229
Mob:0086-13573263229 Whatsapp:008613573263229
Wechat: 008613573263229
http://www.sinosummit.cn
http://www.sinosummit.com.cn
