Ordinary Mild Steel Link Chain Galvanized Chain Link Supplier
1. Ordinary Mild Steel Link Chain Introduction
SHORT LINK CHAIN

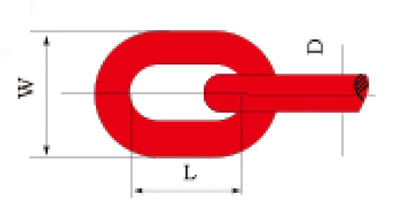

LINK SPECIFICATION | TEST | BREAKING | NETWTPER200FT | ||||
D | L | W | |||||
in | mm | B.F. | H.D.G | ||||
1/8 | 3.2 | 16 | 12 | 200 | 400 | 11.40 | 11.74 |
5/32 | 4 | 18.5 | 14.5 | 300 | 600 | 18.60 | 19.00 |
3/16 | 4.7 | 19 | 17 | 400 | 800 | 26.20 | 27.00 |
7/32 | 5.5 | 20 | 19 | 550 | 1100 | 36.80 | 38.00 |
1/4 | 6.35 | 22 | 21 | 750 | 1500 | 50.00 | 51.50 |
5/16 | 7.94 | 26.5 | 27.2 | 1200 | 2400 | 80.00 | 82.40 |
3/8 | 9.5 | 30 | 32 | 1700 | 3400 | 122.00 | 125.70 |
7/16 | 11.11 | 34 | 36 | 2300 | 4600 | 164.00 | 169.00 |
1/2 | 12.7 | 39 | 43 | 3000 | 6000 | 210.00 | 216.00 |
5/8 | 15.8 | 45 | 53 | 4700 | 9400 | 334.00 | 344.00 |
3/4 | 19 | 55 | 63 | 6800 | 13600 | 485.00 | 499.00 |
7/8 | 22.2 | 64 | 74 | 9250 | 18500 | 656.00 | 675.00 |
1 | 25.4 | 73 | 84 | 12150 | 24300 | 870.00 | 896.00 |
MEDIUM LINK CHAIN
LINK SPECIFICATION | TEST | BREAKING | NETWTPER200FT | |||||
D | L | W | ||||||
in | mm | kg | kg | B.F. | H.D.G | |||
1/8 | 3.2 | 20 | 12 | 200 | 400 | 10.80 | 11.00 | |
5/32 | 4 | 23 | 15 | 300 | 600 | 17.40 | 18.00 | |
3/16 | 4.7 | 25 | 18 | 400 | 800 | 24.40 | 25.00 | |
7/32 | 5.5 | 26 | 19 | 550 | 1100 | 34.00 | 35.00 | |
1/4 | 6,35 | 26 | 23 | 750 | 1500 | 48.80 | 50.00 | |
5/16 | 7.94 | 32 | 29 | 1200 | 2400 | 76.00 | 78.00 | |
3/8 | 9.5 | 35 | 35 | 1700 | 3400 | 111.00 | 114.00 | |
7/16 | 11.11 | 38 | 38 | 2300 | 4600 | 154.00 | 158.00 | |
1/2 | 12.7 | 50 | 45.5 | 3000 | 6000 | 194.00 | 200.00 | |
5/8 | 15.8 | 60 | 56.7 | 4700 | 9400 | 303.00 | 312.00 | |
3/4 | 19 | 76 | 69 | 6800 | 13600 | 432.00 | 445.00 | |
7/8 | 22.2 | 90 | 80 | 9250 | 18500 | 586.00 | 603.00 | |
1 | 25.4 | 105 | 95 | 12150 | 24300 | 770.00 | 792.00 | |
LONG LINK CHAIN
LINK SPECIFICATION | TEST | BREAKING | NETWTPER200FT | |||||
D | L | W | ||||||
in | mm | kg | kg | B.F. | H.D.G | |||
1/8 | 3.20 | 23 | 12 | 200 | 400 | 10.40 | 10.70 | |
5/32 | 4.00 | 27 | 15 | 300 | 600 | 16.60 | 17.50 | |
3/16 | 4.70 | 31 | 17 | 400 | 800 | 22.40 | 23.30 | |
7/32 | 5.50 | 32 | 19 | 550 | 1100 | 32.00 | 33.00 | |
1/4 | 6.35 | 33 | 21 | 750 | 1500 | 43.50 | 44.80 | |
5/16 | 7.94 | 48 | 31 | 1200 | 2400 | 68.00 | 70.00 | |
3/8 | 9.50 | 60 | 37 | 1700 | 3400 | 96.00 | 99.00 | |
7/16 | 11.11 | 71 | 41 | 2300 | 4600 | 126.00 | 129.00 | |
1/2 | 12.70 | 85 | 48.5 | 3000 | 6000 | 167.00 | 172.00 | |
5/8 | 15.80 | 114 | 61.5 | 4700 | 9400 | 256.00 | 264.00 | |
3/4 | 19.00 | 125 | 75 | 6800 | 13600 | 381.00 | 392.00 | |
7/8 | 22.20 | 140 | 88 | 9250 | 18500 | 527.00 | 543.00 | |
1 | 25.40 | 155 | 100 | 12150 | 24300 | 696.00 | 716.00 | |
2. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
3. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! | |
4. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
5.Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
6. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
7.Contact
Mark Wang
International Sales Director
Qingdao Sino Summit Machinery Co., Ltd.
Add: Add: Room 401, Unit 2, Building 9, No. 412 Chongqing Middle Road, Licang District, Qingdao, China
Post Code: 266041
Skype: enjoyfreshair Tel:0086-13573263229
Mob:0086-13573263229 Whatsapp:008613573263229
Wechat: 008613573263229
http://www.sinosummit.cn
http://www.sinosummit.com.cn
